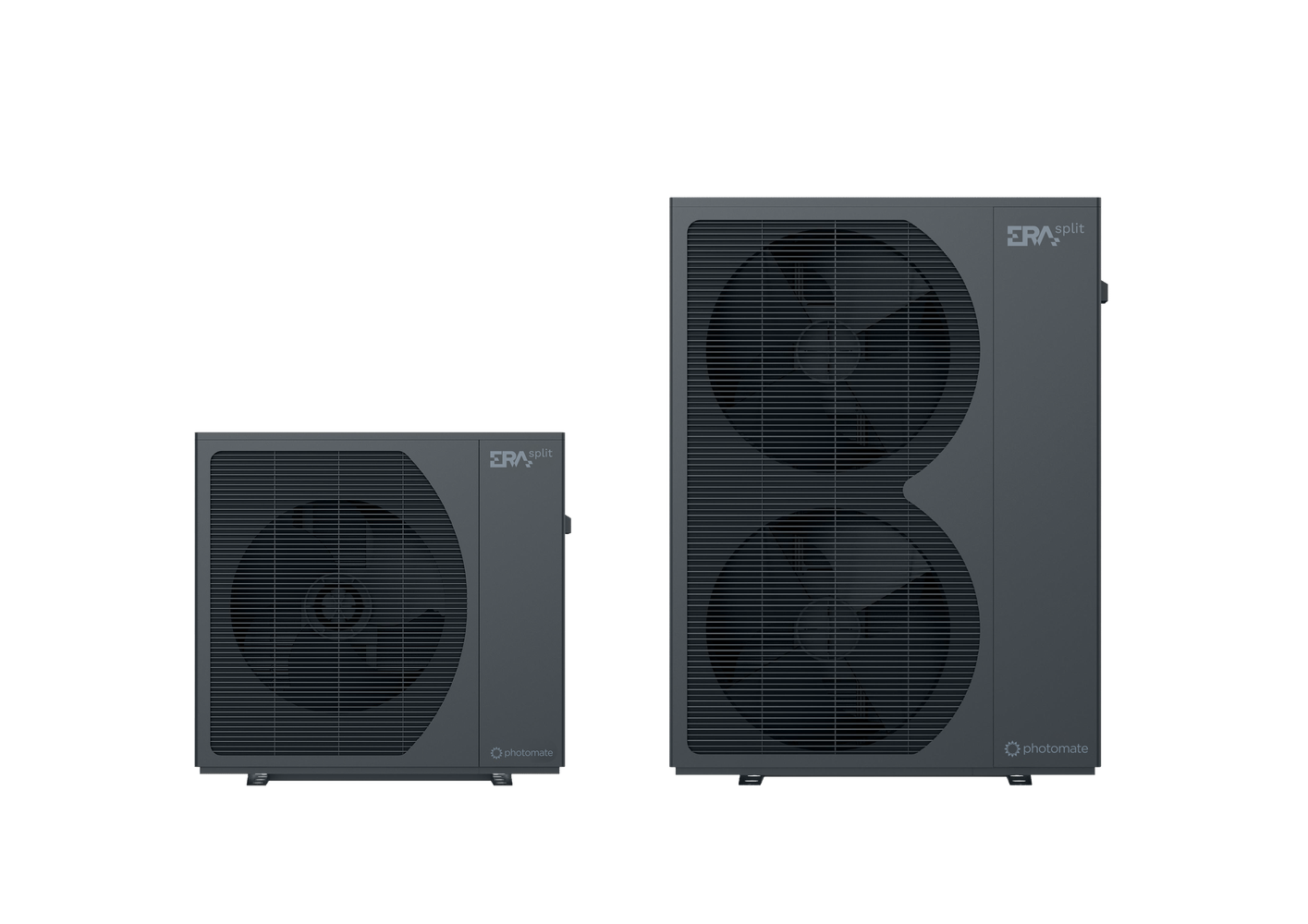

High-quality and reliable heat pump at a great price
- Split type heat pump
- Performances: 6, 9, 13, 16, 18 and 20 kW
- Frequency inverter
- Heating, cooling and water heating
- Refrigerant R32
- SCOP up to 4.56 A+++ / A++
- Output temperature up to 60°C
- Operating conditions heating / water heating -25 to 38°C
- Mitsubishi Electric twin rotary compressor (Panasonic 6kW)
- Noise – max. acoustic power 72 dB (A) – 16 kW
- Heating power 6 kW – voltage 1x230 V
- Heating power 9 – 20 kW – 3x400 V
- Heated condensate pan
- Cascade up to 8 HP – total power up to 160 kW
Technical specification
| Model | EraSPLIT 6 kw | EraSPLIT 9 kw | EraSPLIT 13 kw | EraSPLIT 16 kw | EraSPLIT 18 kw | EraSPLIT 20 kw |
| Energy efficiency at 35°C / 55°C | A+++ / A++ | |||||
| SCOP EN 14825 Average climate, 35/55°C | 4,48/3,29 | 4,53 / 3,33 | 4,55 / 3,30 | 4,54 / 3,33 | 4,54 / 3,41 | 4,49 / 3,29 |
| Seasonal heating efficiency 35°C, average climate | 200,3 | 199,1 | 199,0 | 199,8 | ||
| Power A7/W35 (kW) | 6 | 9 | 13 | 16 | 18 | 20 |
| Prated EN 14825 (35/55°C) | 4,8 | 7,0 | 9,8 | 12,8 | ||
| Maximum output temperature (°C) | 60 | |||||
| Heating operating conditions (°C) | -25 ~ +38 | |||||
| Cooling operating conditions (°C) | +15 ~ +43 | |||||
| Sound pressure 1m dB(A) * | 49 | 52 | 56 | 69 | 59 | 60 |
| Power supply (V) | 230 | 400 | ||||
| Circuit breaker, motor characteristic (A) | 16 | 6 | 10 | 10 | 16 | 16 |
| Refrigerant pipe gas | Φ15.88 | |||||
| Refrigerant pipe liquid | Φ6.35 | Φ9.52 | ||||
| Refrigerant | R32 | |||||
| Refrigerant amount (kg) | 1,4 | 2,2 | 2,2 | 2,8 | 2,8 | 2,8 |
| Dimensions (mm) height / width / depth | 710 / 960 / 425 | 928 / 977 / 400 | 1360 / 1005 / 395 | |||
| Weight without packaging (kg) | 65 | 102 | 122 | |||
| Wifi connection | Yes | |||||
* according to EN 12012 standard
EraSPLIT heat pump control unit
Description:
- Intuitive touch control, 4" display
- User-friendly control
- Wifi internet connection
- MODBUS RTU
- Quick setting of all parameters
- Online remote management - possibility of parameter reset
- Communication cable with connectors always included in delivery - communication cannot be connected incorrectly
- Outdoor temperature is uploaded from the outdoor unit
Control and management:
- 1x direct circuit
- 1x mixed circuit + circulation pump
- Water heating
- Hot water circulation
- Heating / hot water changeover valve
- Heating / cooling changeover valve
- 1x thermal solar system
- Heating circuit circulation pump
Indoor units IHB for EraSPLIT heat pump
- Option for new buildings and renovations without a requirement for hot water or with a requirement of more than 200 liters of hot water
- Easy installation
- Compact dimensions
- Instantaneous electric boiler 9 kW
- Power supply 3 x 400 V
- Circuit breaker 16 A/B
- Circuit pump
- Heat exchanger (condenser)
- Heating expansion valve 8 liters
- Automatic air vent valve
- Three-way valve
- Insulated pipes and all components against condensation
- 4" touch screen
- Clear menu
- WiFi internet connection
- MODBUS RS485, RTU protocol
- Hanging bracket, dowels and screws
