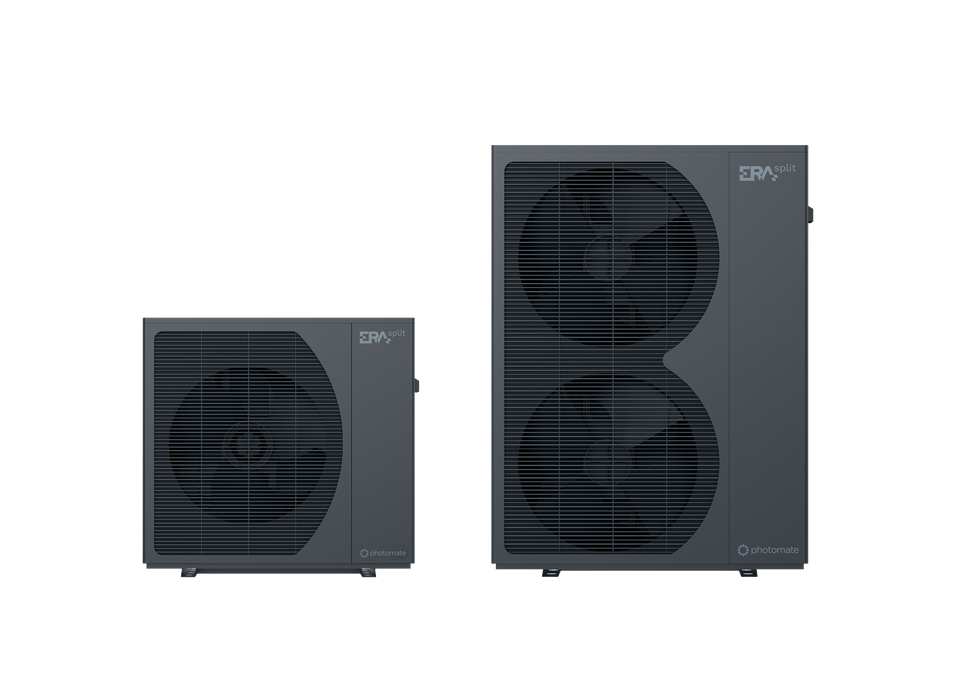

High-quality and reliable heat pump at a great price

  • Split type heat pump
  • Performances: 6, 9, 13, 16, 18 and 20 kW
  • Frequency inverter
  • Heating, cooling and water heating
  • Refrigerant R32
  • SCOP up to 4.56 A+++ / A++
  • Output temperature up to 60°C
  • Operating conditions heating / water heating -25 to 38°C
  • Mitsubishi Electric twin rotary compressor (Panasonic 6kW)
  • Noise – max. acoustic power 72 dB (A) – 16 kW
  • Heating power 6 kW – voltage 1x230 V
  • Heating power 9 – 20 kW – 3x400 V
  • Heated condensate pan
  • Cascade up to 8 HP – total power up to 160 kW

Technical specification

ModelEraSPLIT 6 kwEraSPLIT 9 kw
EraSPLIT 13 kw
EraSPLIT 16 kw
EraSPLIT 18 kw
EraSPLIT 20 kw
Energy efficiency at 35°C / 55°C
A+++ / A++

SCOP EN 14825 Average climate, 35/55°C
4,48/3,294,53 / 3,33
4,55 / 3,30
4,54 / 3,33
4,54 / 3,414,49 / 3,29
Seasonal heating efficiency 35°C, average climate
200,3
199,1
199,0
199,8


Power A7/W35 (kW)
6913161820
Prated EN 14825 (35/55°C)
4,87,09,812,8

Maximum output temperature (°C)
60
Heating operating conditions (°C)
-25 ~ +38
Cooling operating conditions (°C)
+15 ~ +43
Sound pressure 1m dB(A) *
495256695960
Power supply (V)
230400
Circuit breaker, motor characteristic (A)
16610101616
Refrigerant pipe gas
Φ15.88
Refrigerant pipe liquid
Φ6.35
Φ9.52
Refrigerant
R32
Refrigerant amount (kg)
1,42,22,22,82,82,8
Dimensions (mm) height / width / depth
710 / 960 / 425928 / 977 / 4001360 / 1005 / 395
Weight without packaging (kg)
65102122
Wifi connection
Yes

* according to EN 12012 standard

EraSPLIT heat pump control unit

Description:

  • Intuitive touch control, 4" display
  • User-friendly control
  • Wifi internet connection
  • MODBUS RTU
  • Quick setting of all parameters
  • Online remote management - possibility of parameter reset
  • Communication cable with connectors always included in delivery - communication cannot be connected incorrectly
  • Outdoor temperature is uploaded from the outdoor unit

Control and management:

  • 1x direct circuit
  • 1x mixed circuit + circulation pump
  • Water heating
  • Hot water circulation
  • Heating / hot water changeover valve
  • Heating / cooling changeover valve
  • 1x thermal solar system
  • Heating circuit circulation pump

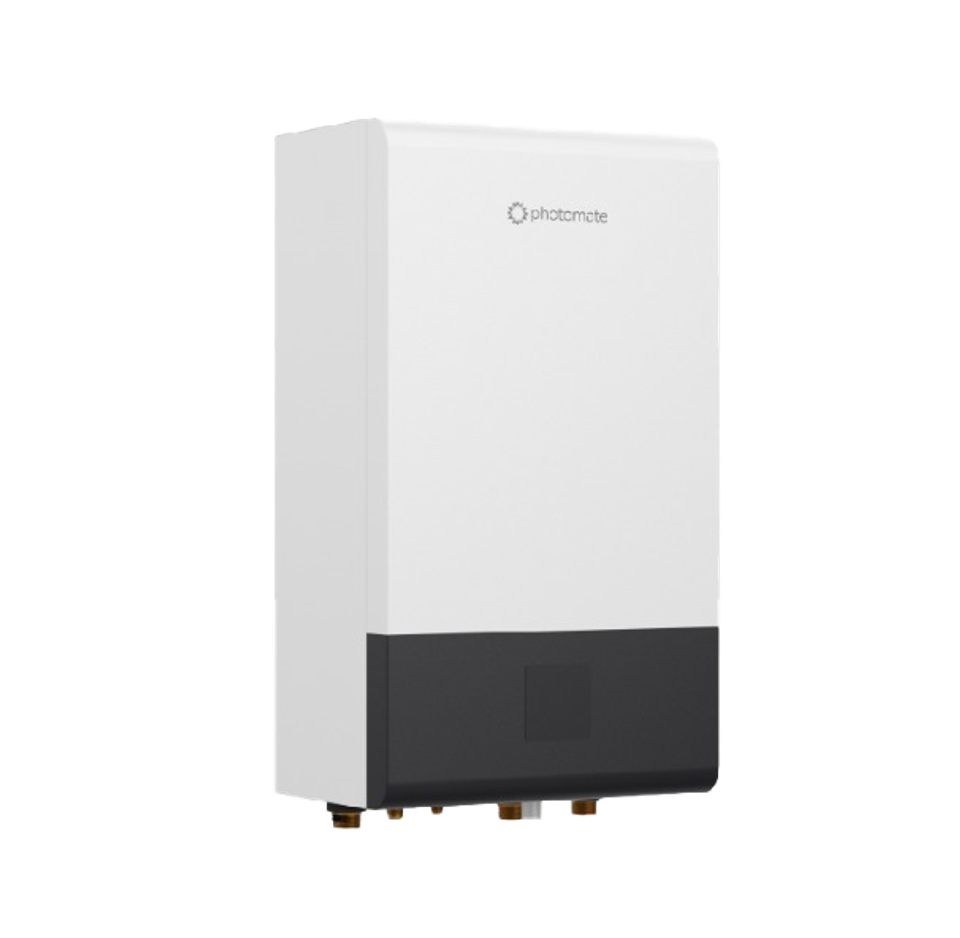

Indoor units IHB for EraSPLIT heat pump

  • Option for new buildings and renovations without a requirement for hot water or with a requirement of more than 200 liters of hot water
  • Easy installation
  • Compact dimensions

  • Instantaneous electric boiler 9 kW
  • Power supply 3 x 400 V
  • Circuit breaker 16 A/B
  • Circuit pump
  • Heat exchanger (condenser)
  • Heating expansion valve 8 liters
  • Automatic air vent valve
  • Three-way valve
  • Insulated pipes and all components against condensation
  • 4" touch screen
  • Clear menu
  • WiFi internet connection
  • MODBUS RS485, RTU protocol
  • Hanging bracket, dowels and screws
