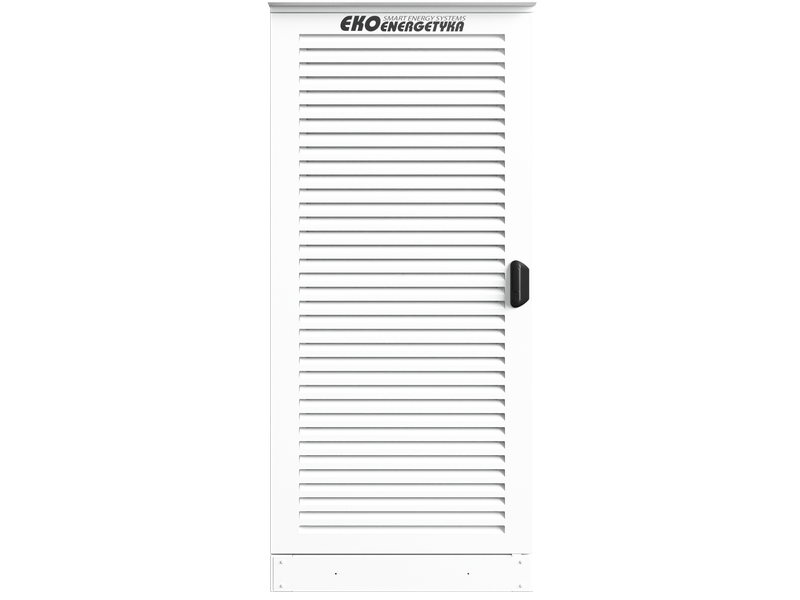

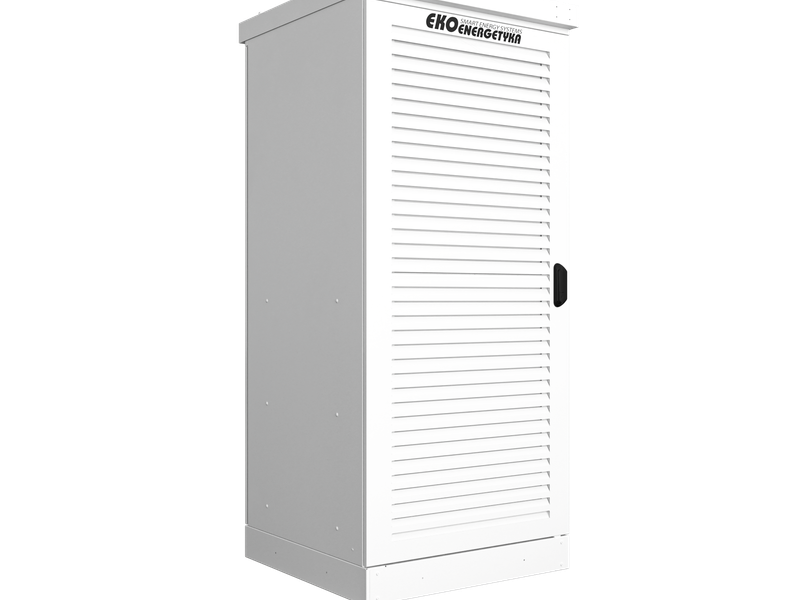

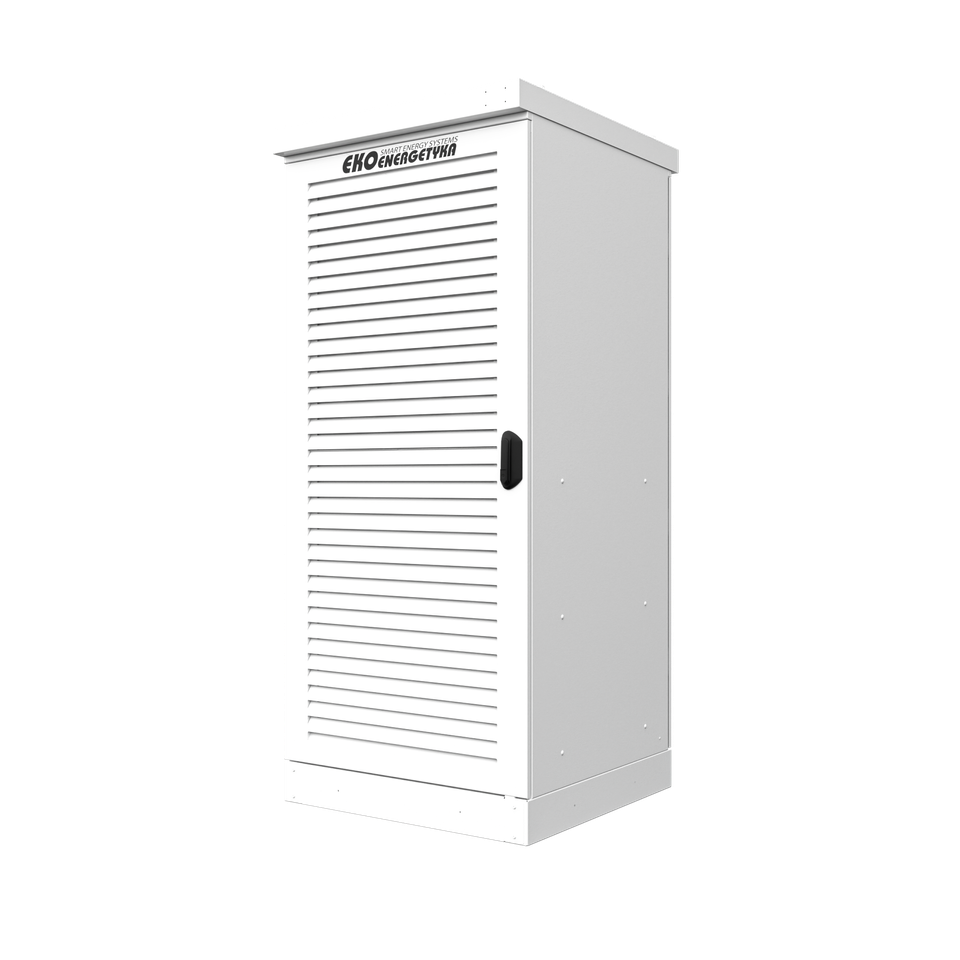

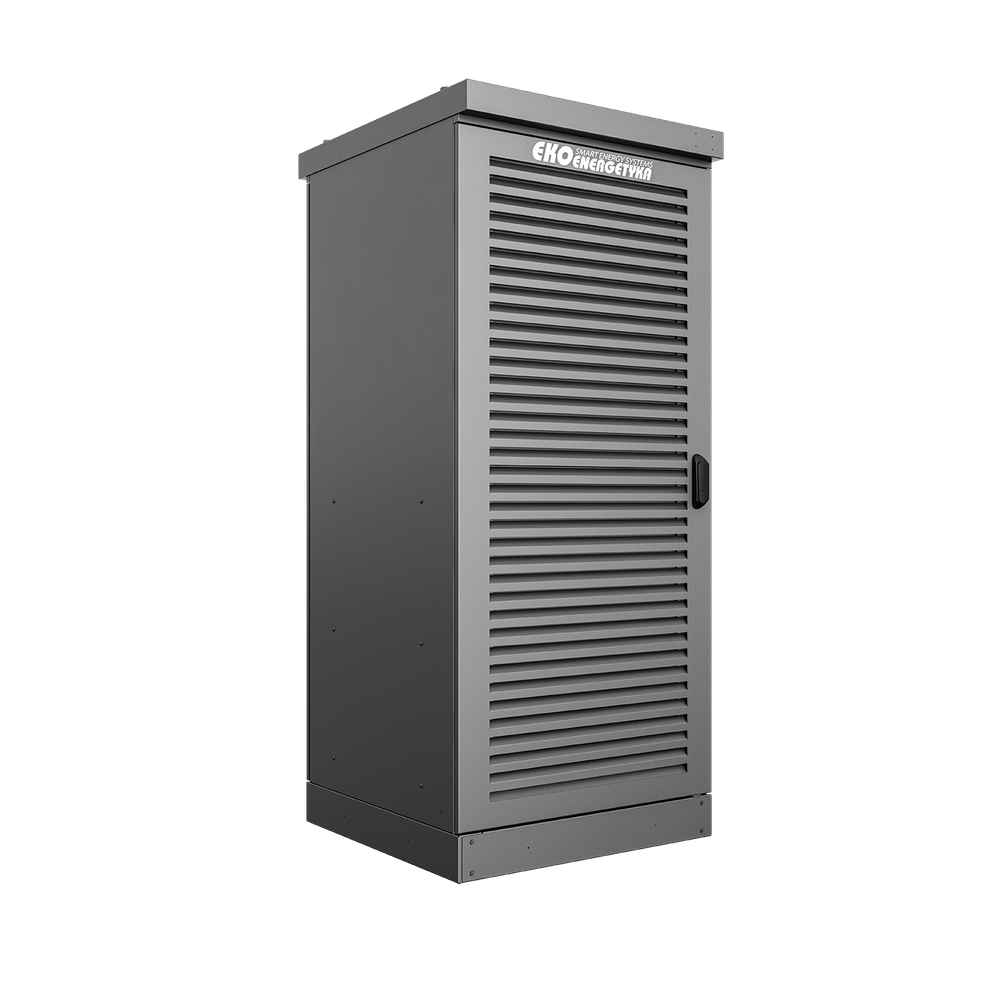

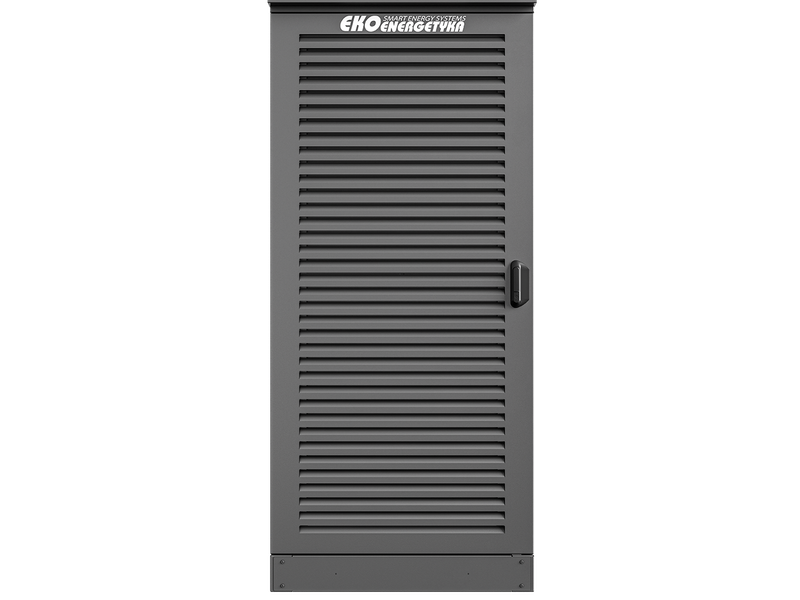

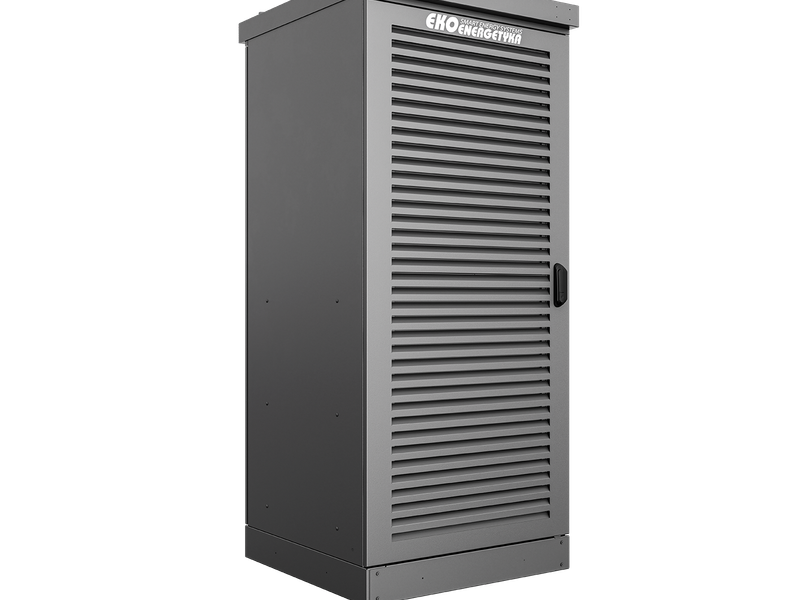

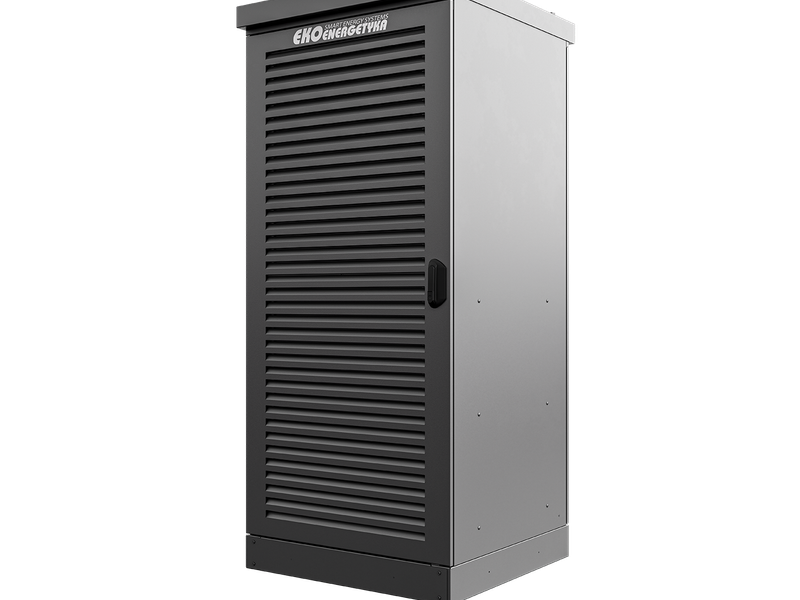

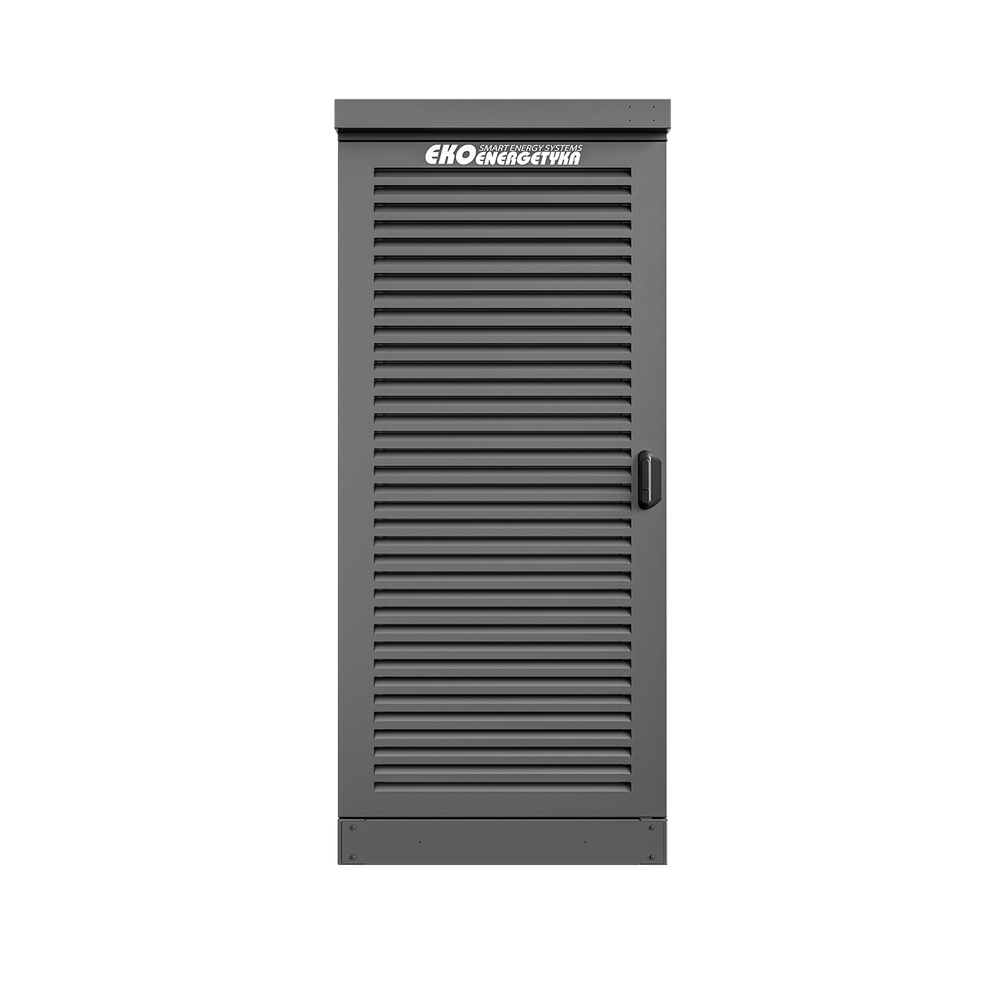

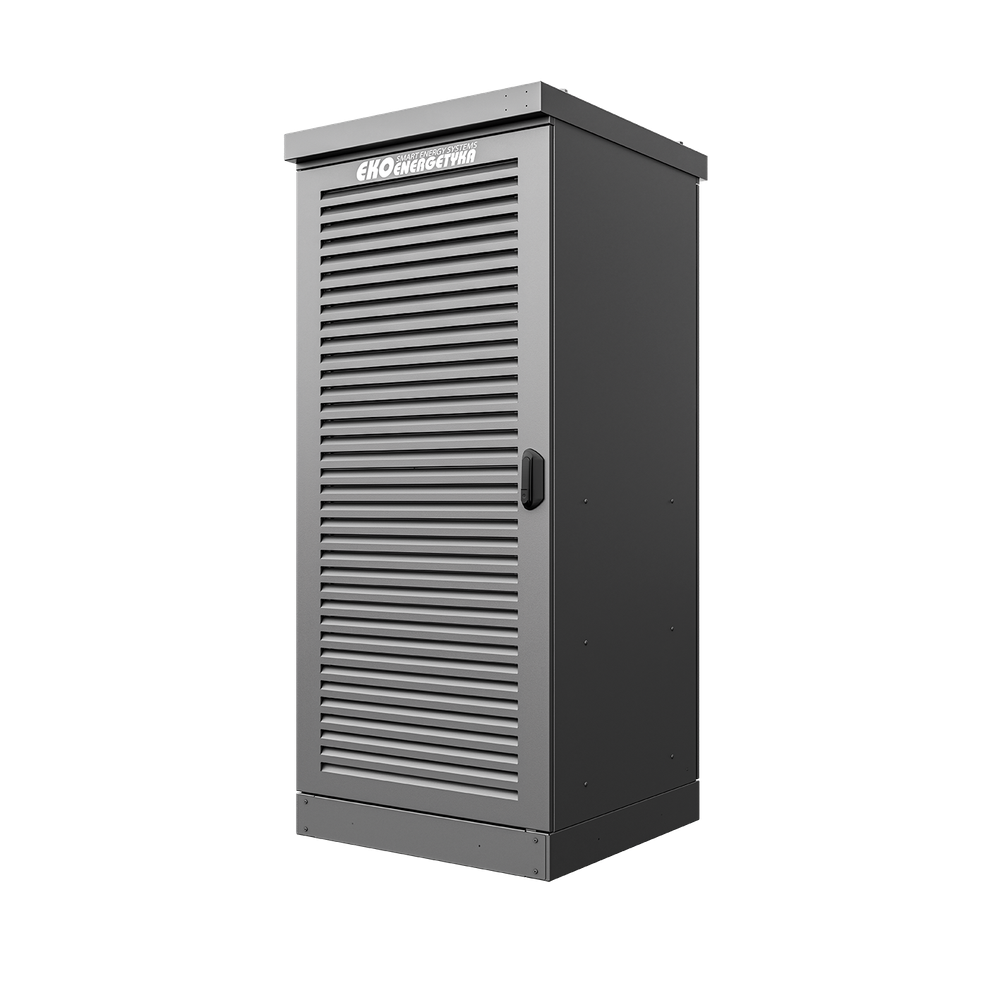

POWER UNIT AXON SIDE 360 DLBS
- Power Unit providing high-speed, high-power direct current (DC) charging
- The unit is a ready-made concept for connecting satellites and creating and expanding charging hubs
- Up to 6 outputs can be connected. This allows the charging HUB to be optimally configured to meet the needs of the site. It supports a full range of electric vehicles
- Suitable for integration with all charging service providers.
Power: 360 kW
Device type: Power Unit
Power Split: Dynamic Load Balancing Systém (DLBS)
Granularity: 60 kW
Number of outputs: up to 6
Voltage range: 150 – 1000 V
Max. charging current: 2 x 500 A, 6 x 200 A
Hub charging variants: SAT 400, SAT 600, SAT Box, Sat One +
Plug & Charge: ready
