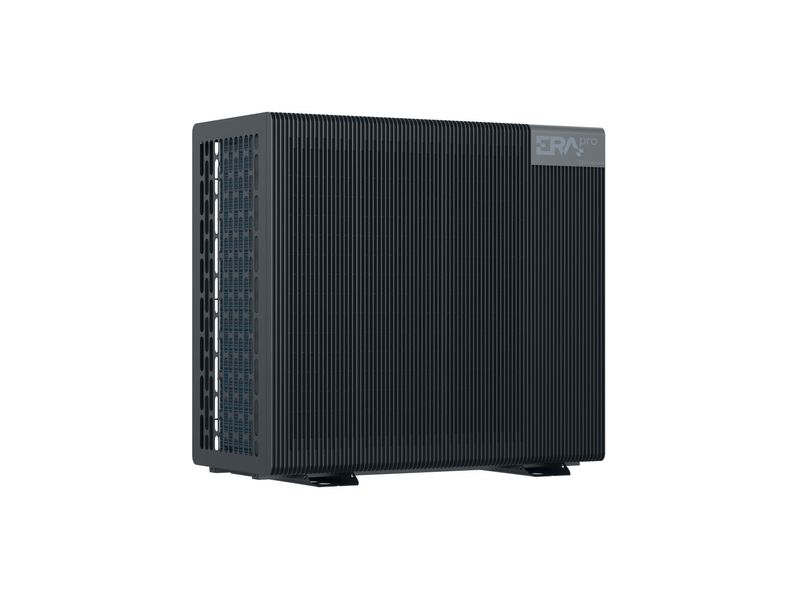

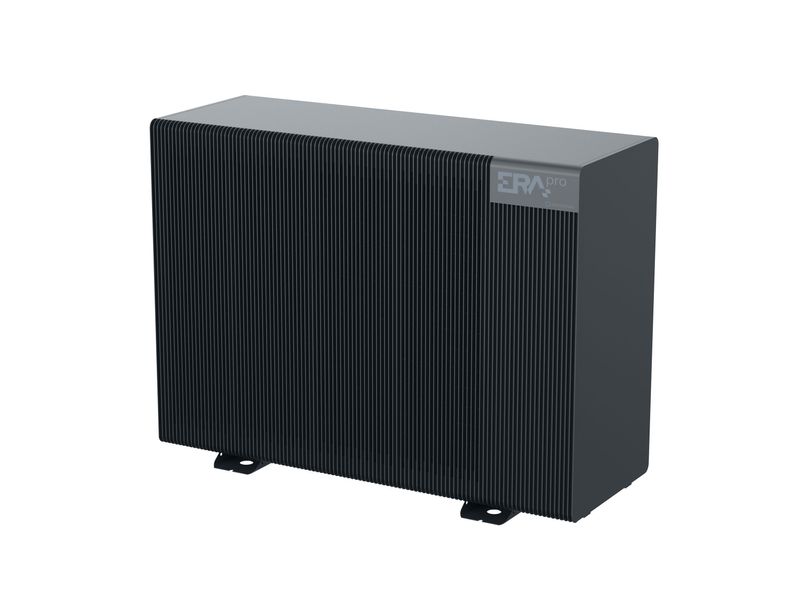

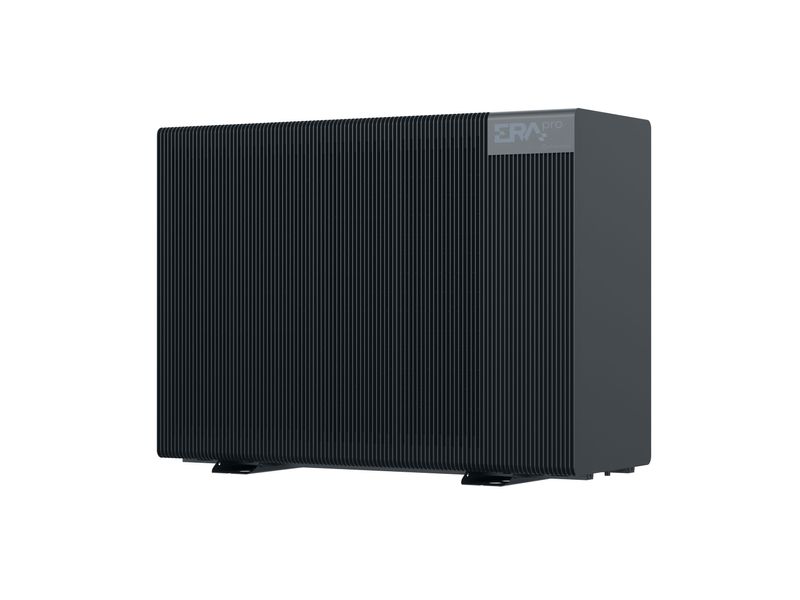

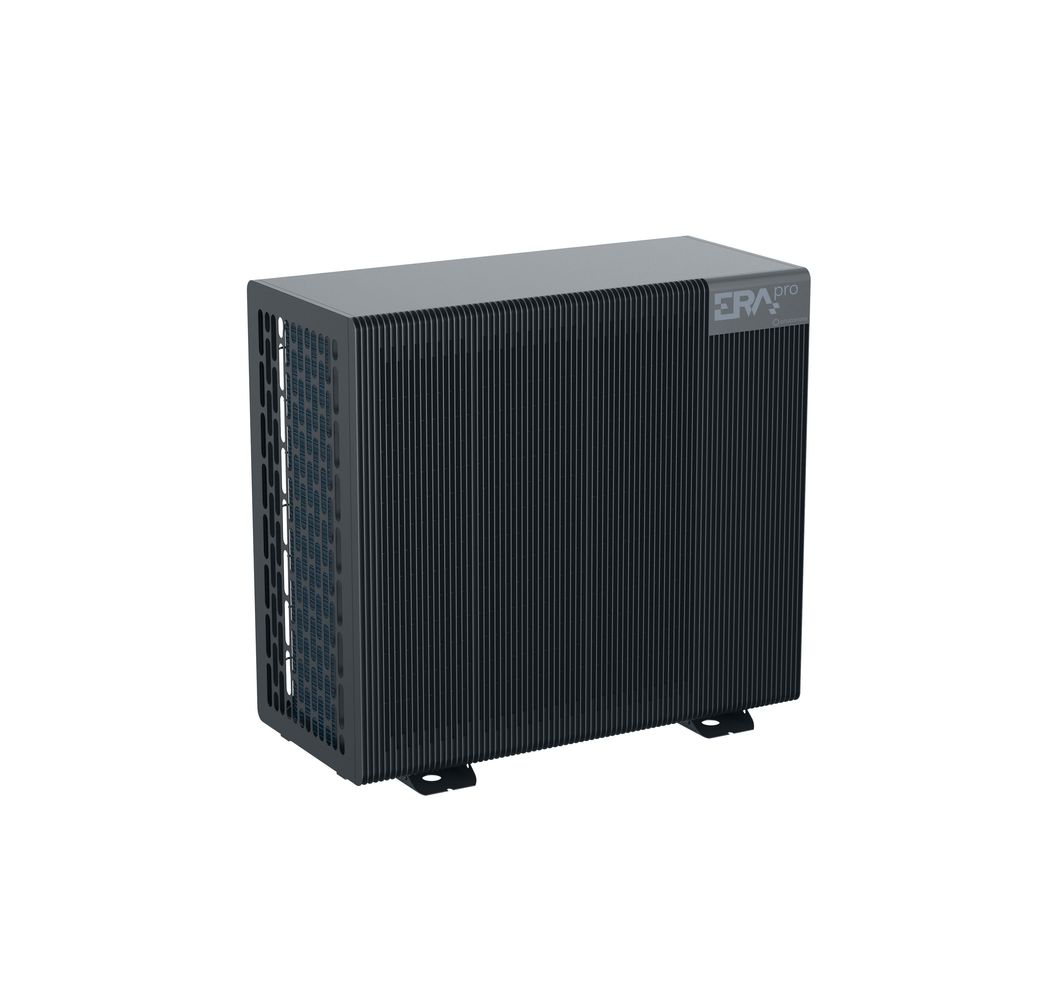

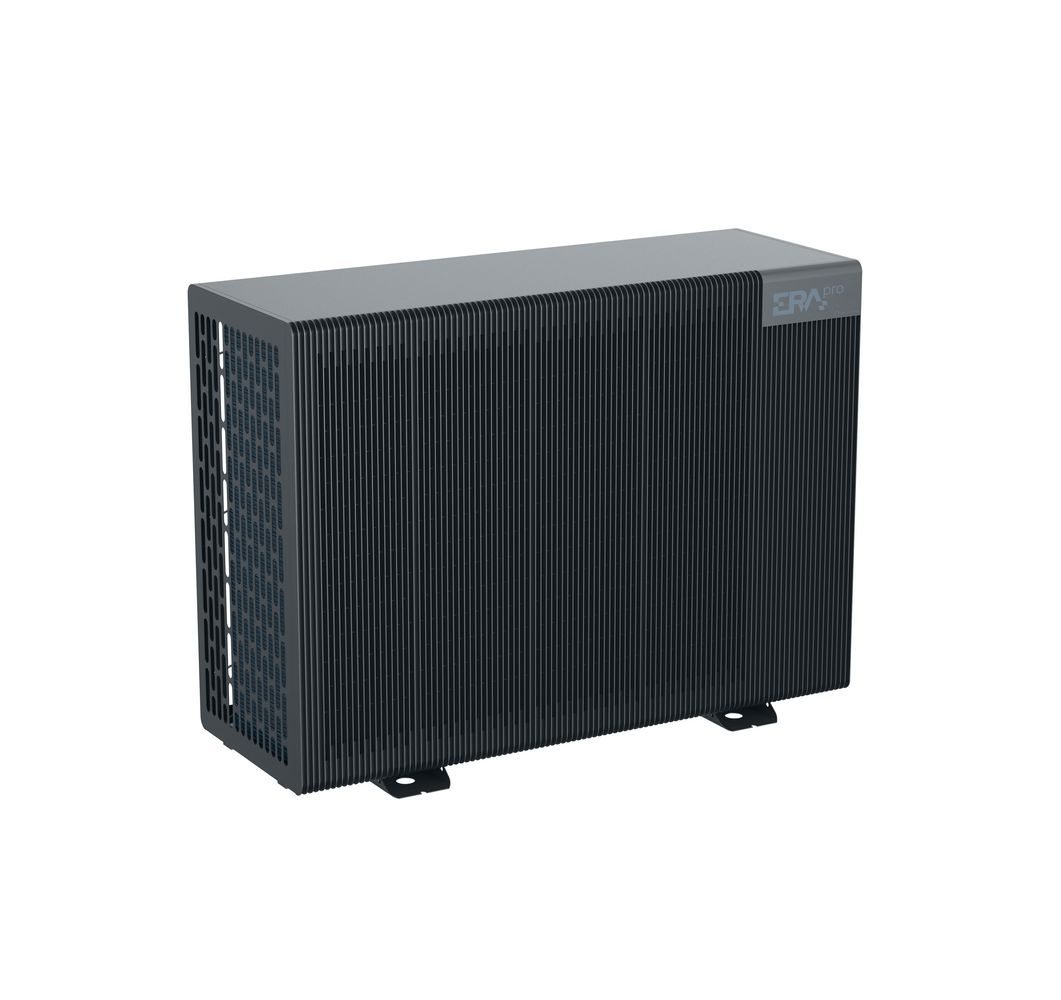

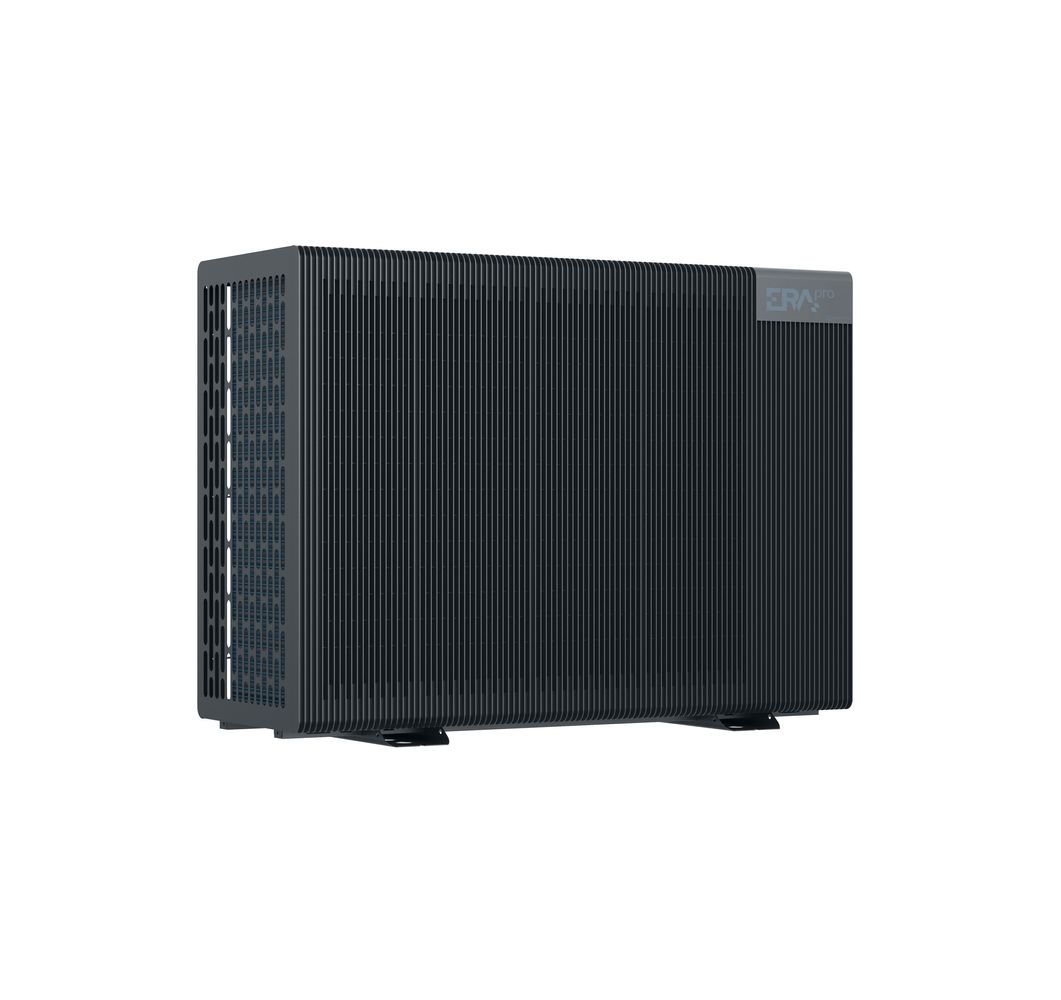

Premium heat pump for new buildings and renovations

  • Monoblock heat pump 6 / 9 kW (230V) and 13 / 16 kW (400V)
  • Frequency inverter
  • Heating, cooling and water heating
  • Refrigerant R290
  • SCOP up to 5.08
  • Output temperature up to 75°C
  • Operating conditions heating / water heating -25 to 38°C
  • Sound pressure according to EN 12102 is 38 dB (A) at 1m from the unit for EraPRO 6kw
  • Robust construction, heated condensate pan
  • Intelligent functions for less frequent and fast defrosting
  • Very easy electrical connection and quick installation
  • Cascade of up to 8 HP – max. output 128kW

Integrated components:

  • WILO speed-controlled circulation pump
  • Mitsubishi Electric twin-rotary compressor
  • Gas separator and magnetic filter
  • Safety valve incl. drain hose
  • Refrigerant leak detector with alarm function
  • Flow meter

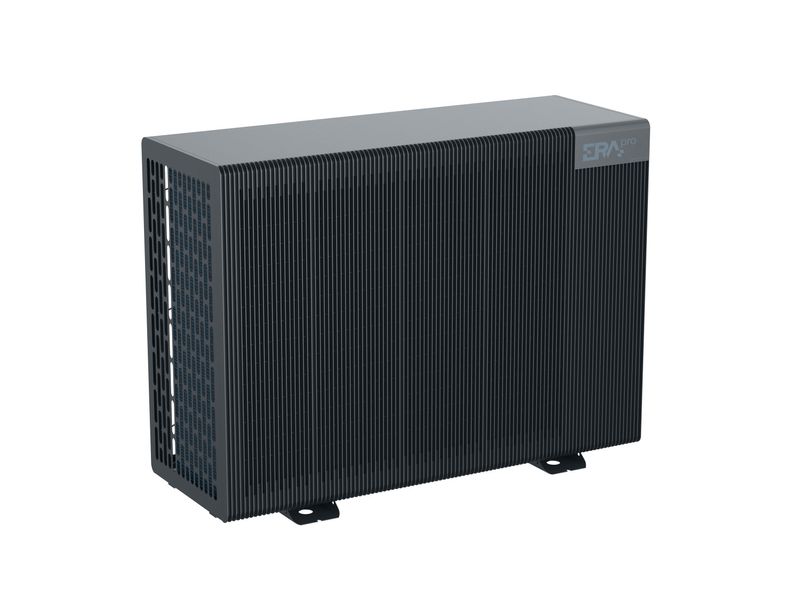

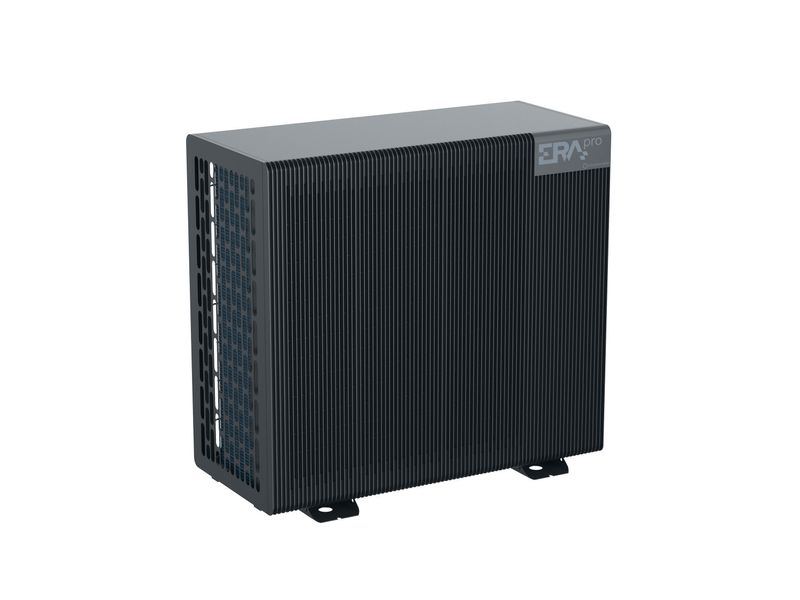

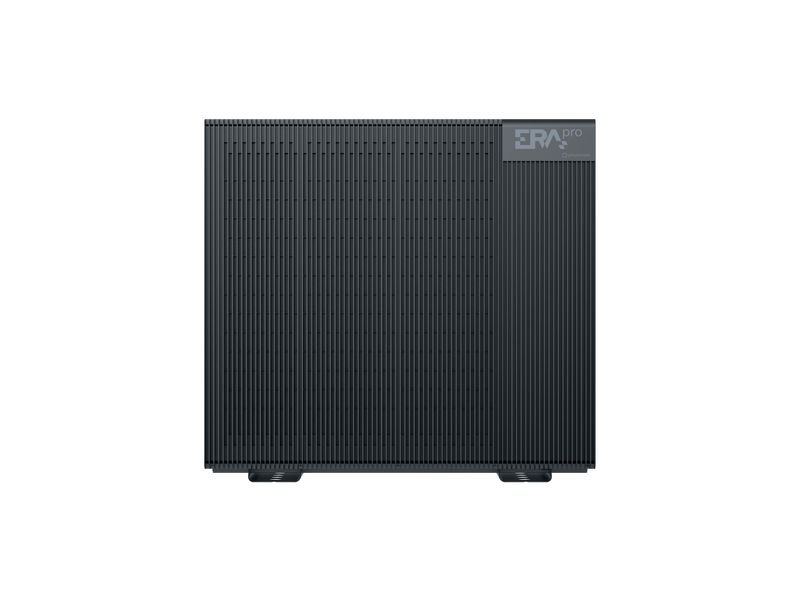

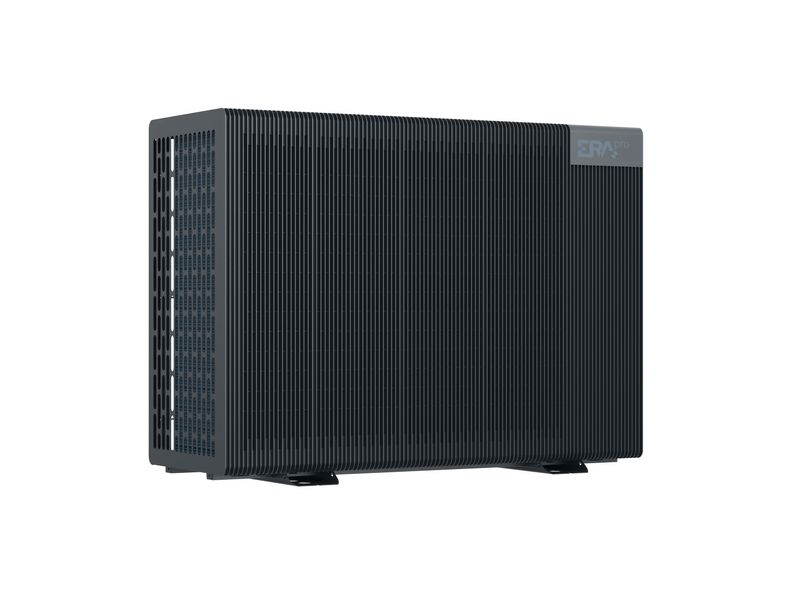

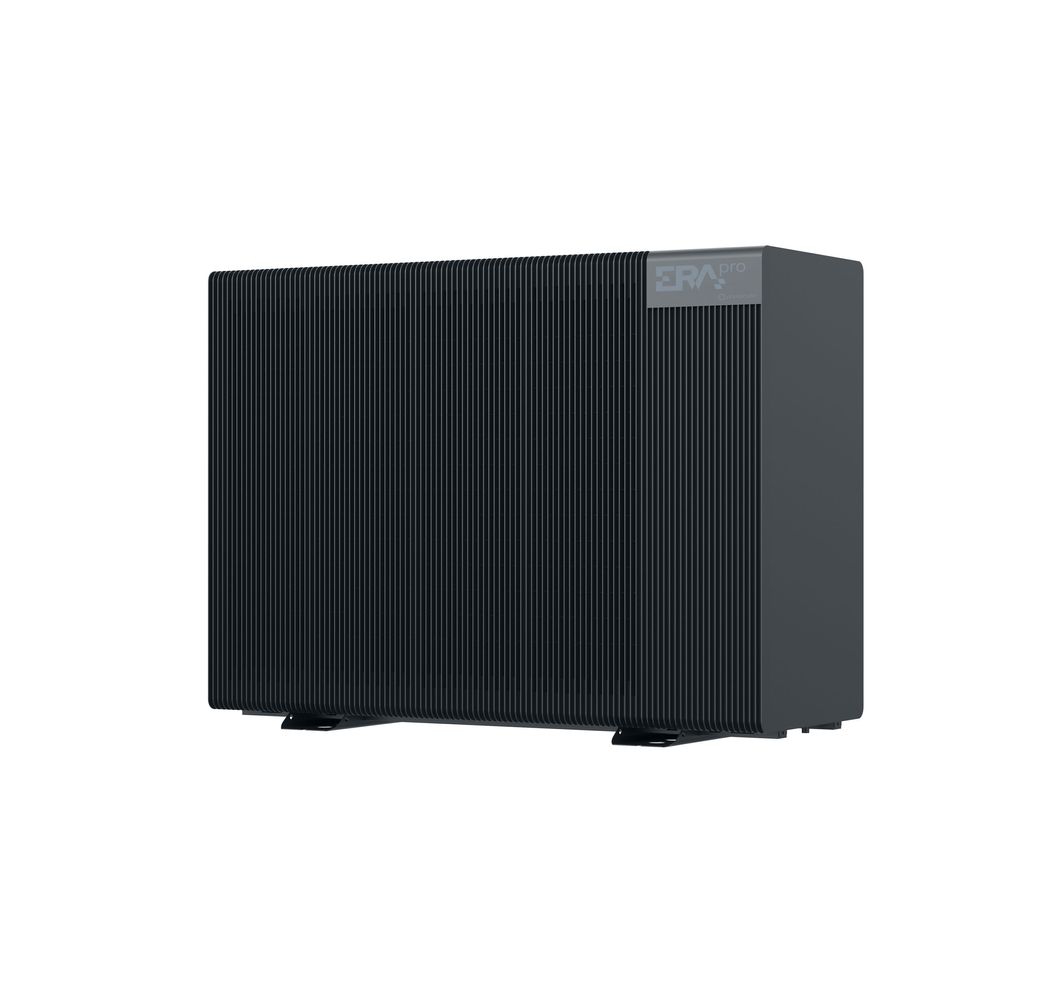

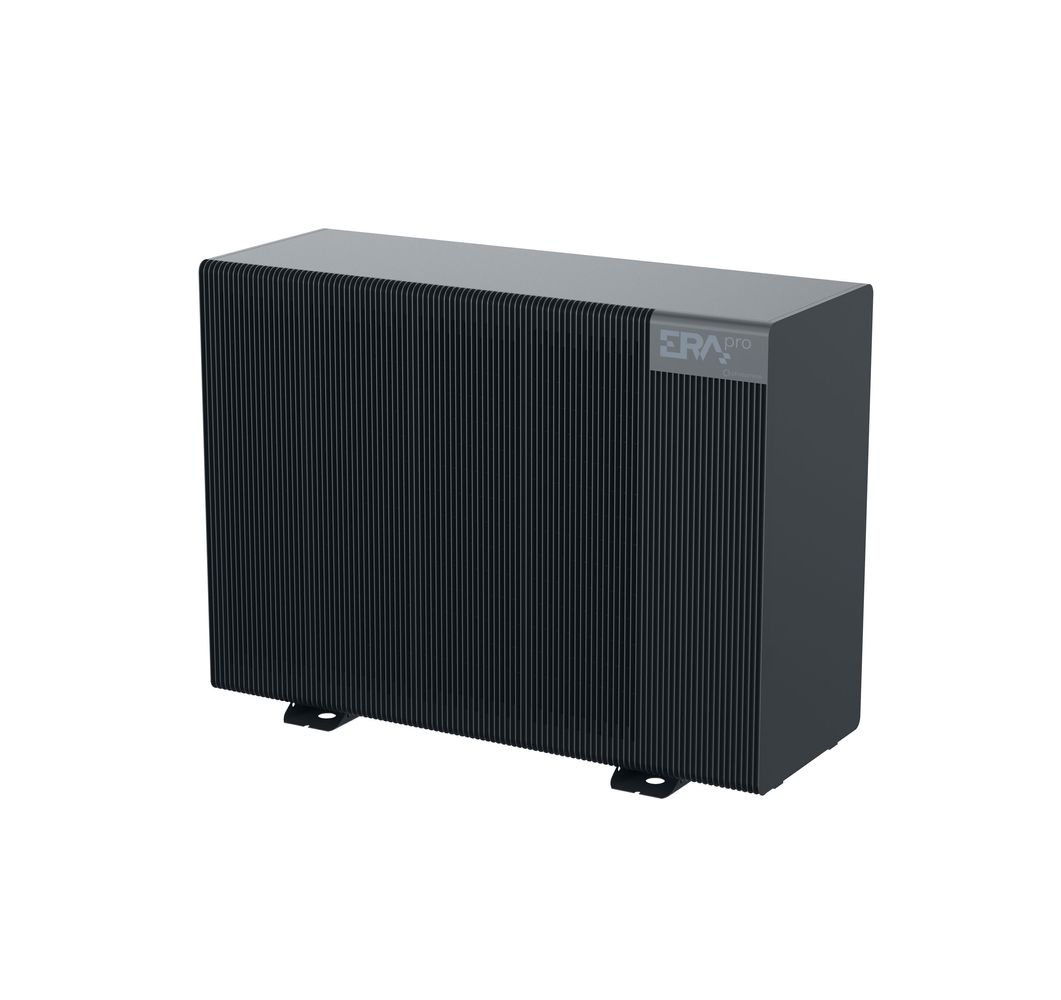

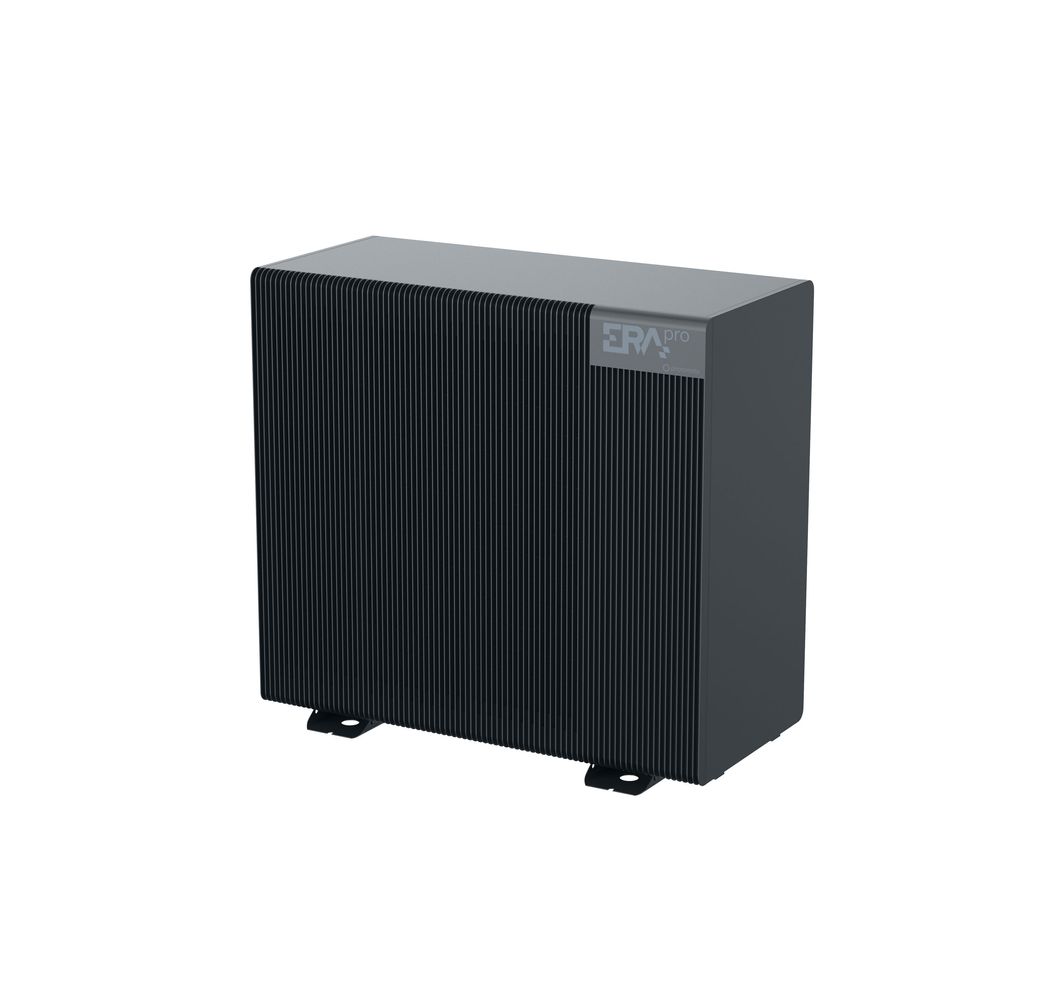

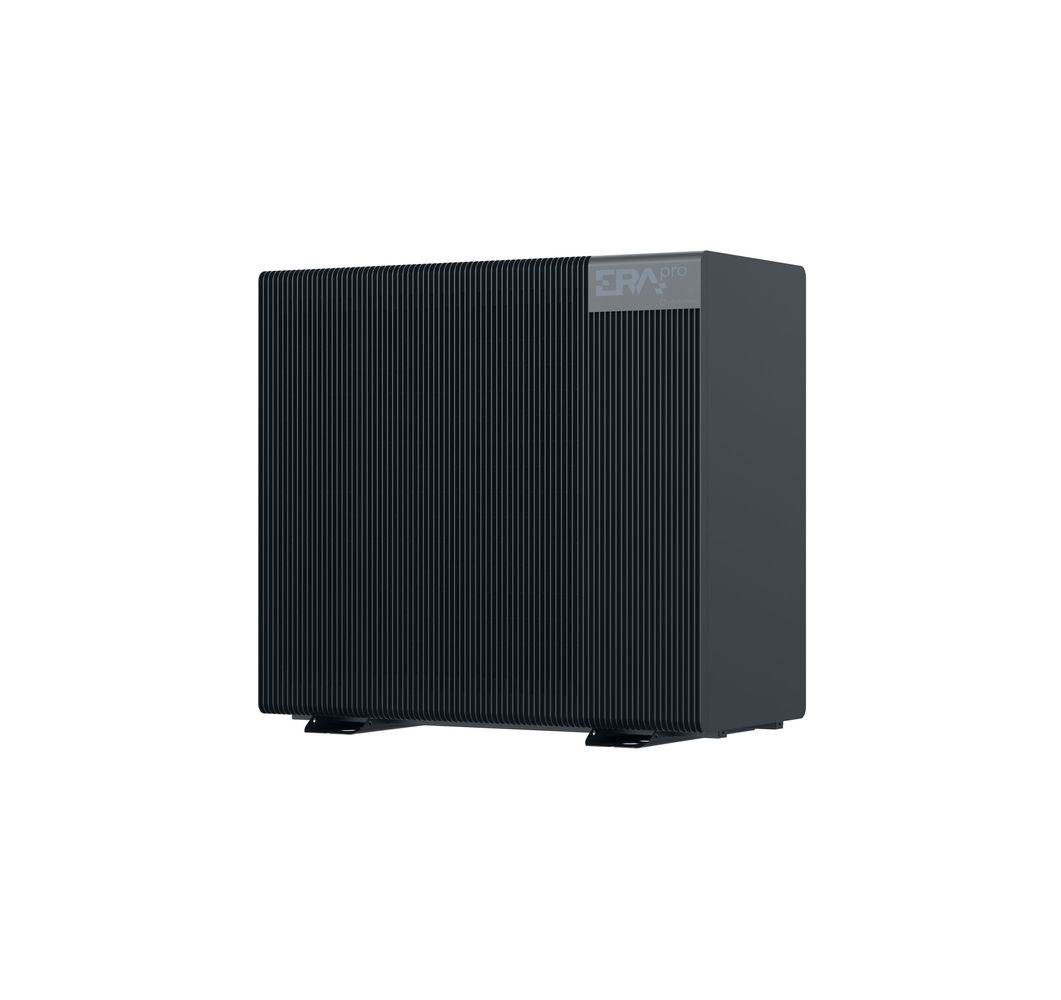

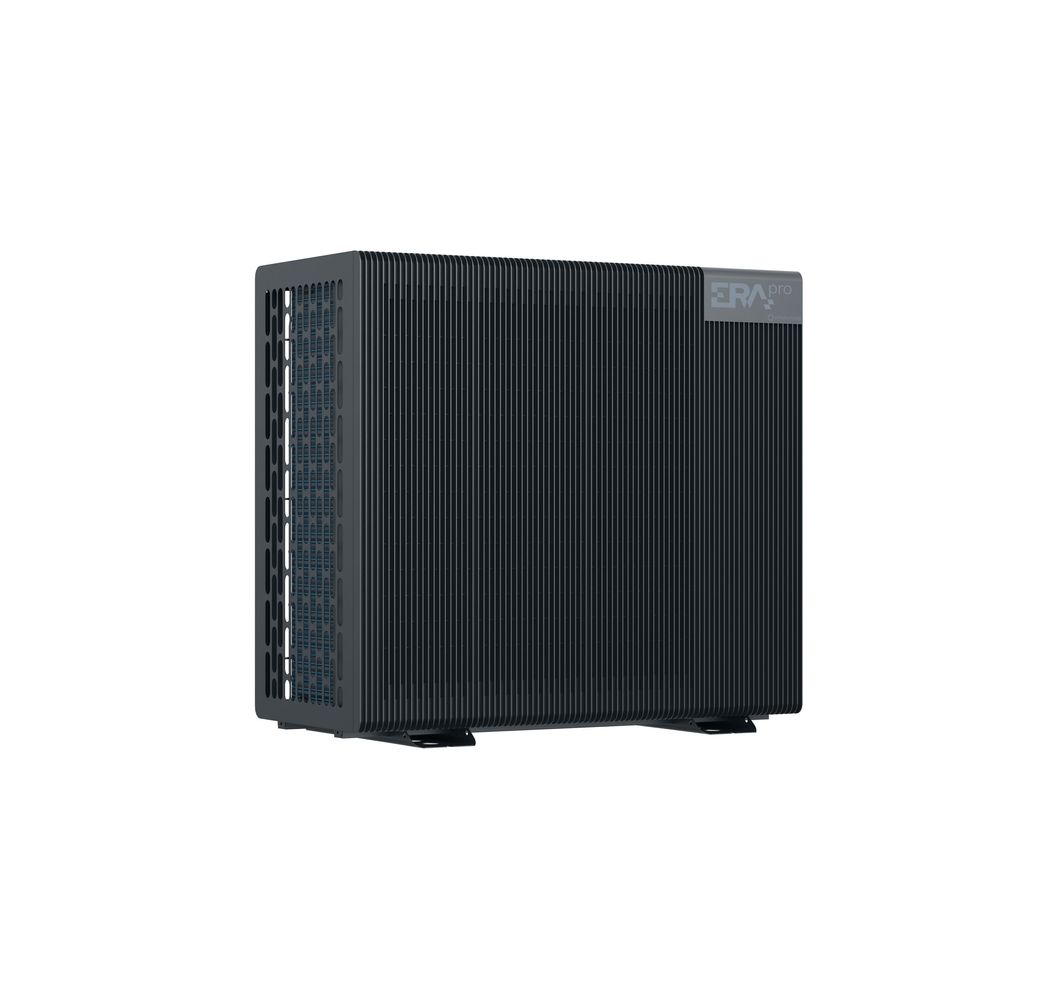

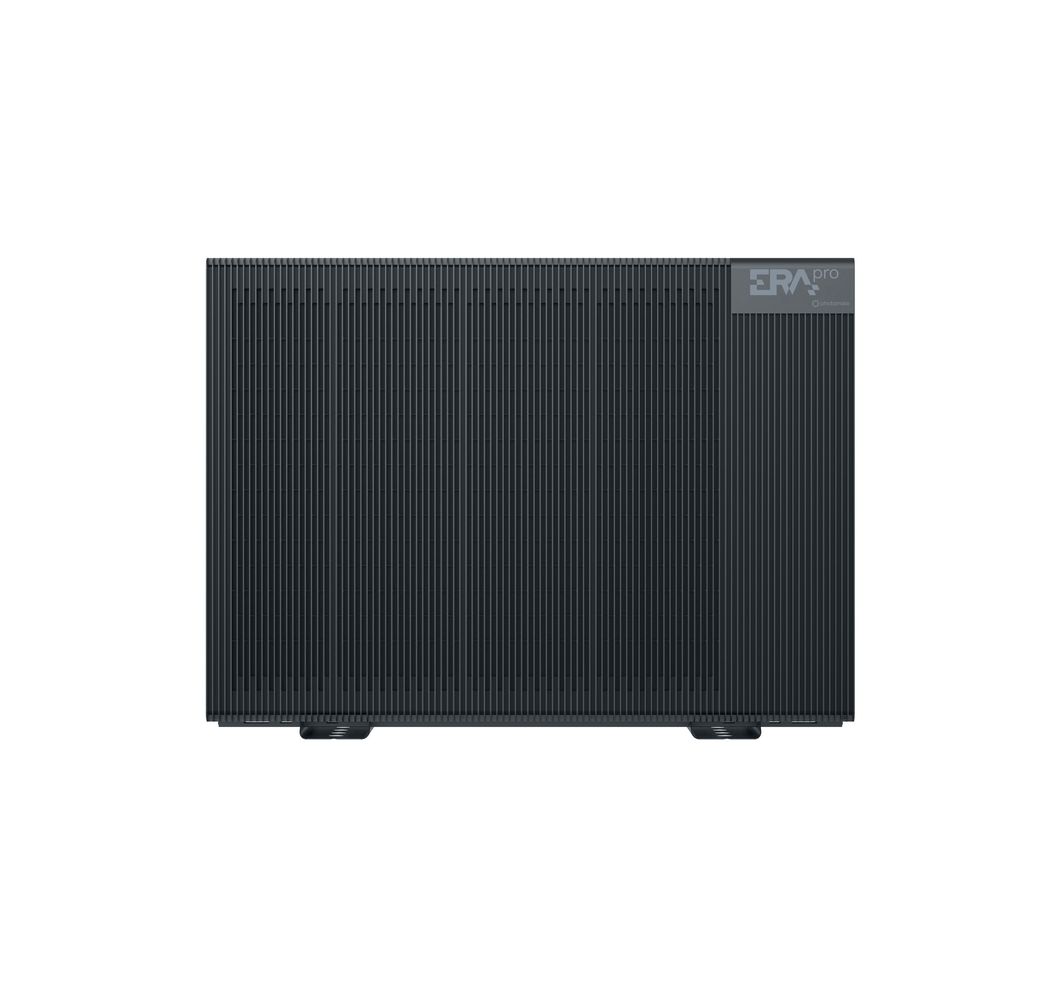

  • 4af593bc-erapro-13kw-02.jpeg
  • 25c5e344-erapro-13kw-03.jpeg
  • de69070d-erapro-13kw-05.jpeg
  • 9fc6bdc1-erapro-13kw-04.jpeg

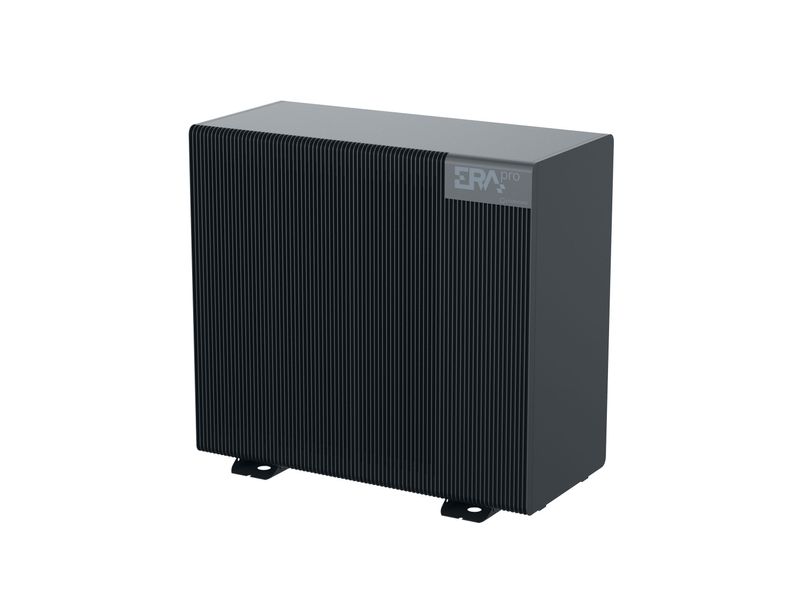

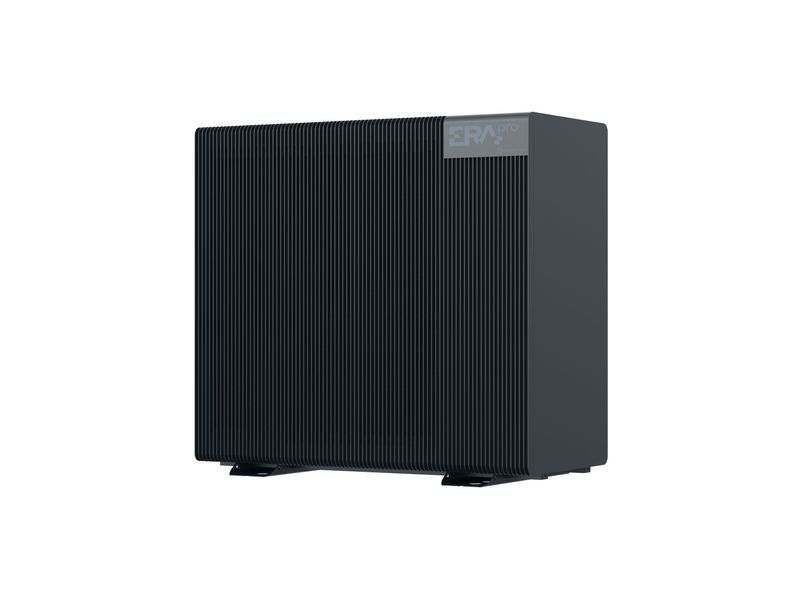

  • 8d734156-erapro-9kw-01.jpeg
  • 711acbca-erapro-9kw-03.jpeg
  • 19945178-erapro-9kw-02.jpeg
  • b952416c-erapro-9kw-05.jpeg
  • dcb60ef3-erapro-9kw-04.jpeg

Technical specification

ModelEraPRO 6 kwEraPRO 9 kw
EraPRO 13 kw
EraPRO 16 kw
Energy efficiency at 35°C / 55°C
A+++ / A++
SCOP EN 14825 Average climate, 35/55°C
5,08 / 3,66
5,05 / 3,73
5,05 / 3,80
5,07 / 3,69
Seasonal heating efficiency 35°C, average climate
200,3
199,1
199,0
199,8
Power A7/W35 (kW)
691316
Prated EN 14825 (35/55°C)
4,87,09,812,8
Maximum output temperature (°C)
75
Heating operating conditions (°C)
-25 ~ +38
Cooling operating conditions (°C)
+15 ~ +43
Sound power dB(A)*
52565860
Sound pressure 1m dB(A) *
38424446
Sound pressure 3m dB(A)*
26303234
Power supply (V)
230400
Circuit breaker, motor characteristic (A)
1620 (16**)
1010
Refrigerant
R290
Refrigerant amount (kg)
0,750,901,051,28
Dimensions (mm) height / width / depth
1021 / 1102 / 575
1021 / 1377 / 575
Weight without packaging (kg)
130135190195
Wifi connection
Yes

* according to EN 12012 standard
** when changing settings

EraPRO heat pump control unit

Description:

  • Intuitive touch control, 7" display
  • Wifi internet connection
  • MODBUS RTU
  • Quick setting of all parameters
  • Online remote management - possibility of parameter reset
  • Communication cable with connectors always included in delivery - communication cannot be connected incorrectly
  • Outdoor temperature is uploaded from the outdoor unit

Control and management:

  • 1x direct circuit
  • 1x mixed circuit + circulation pump
  • Water heating
  • Hot water circulation
  • Heating / hot water changeover valve
  • Heating / cooling changeover valve
  • 1x thermal solar system
  • Heating circuit circulation pump
  • Bivalent source

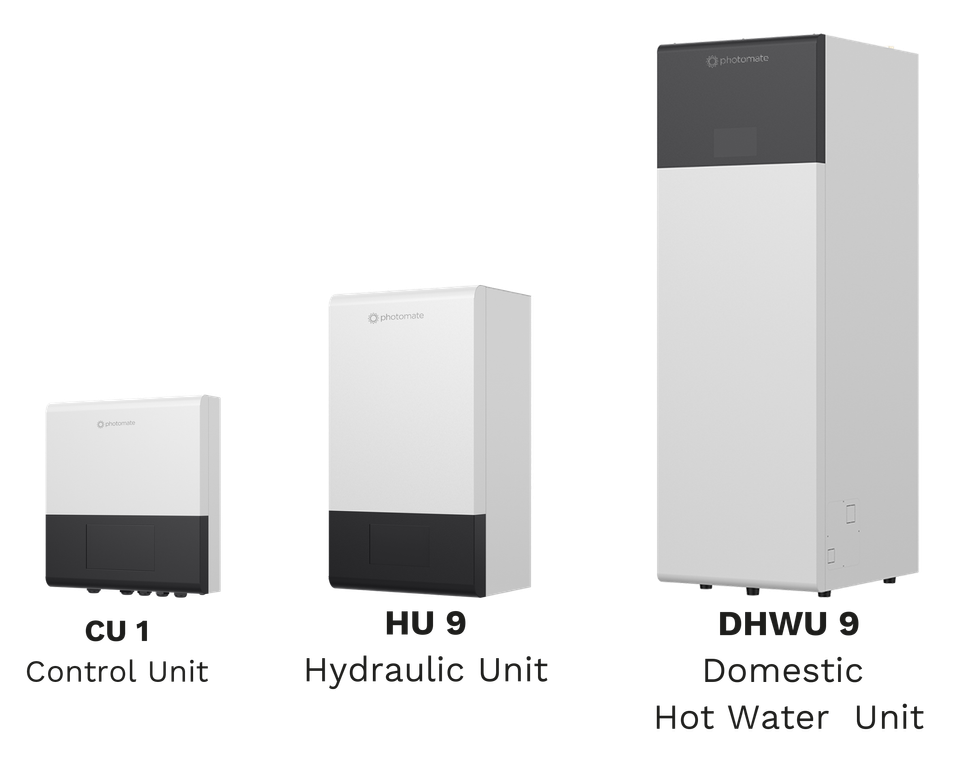

Indoor units for EraPRO heat pump

ModelCU 1HU 9DHWU 9
Water heating control
Yes
Heating2 circuits
Cooling1 circuit
Auxiliary source control
Yes
Integrated auxiliary power supply
NoYes / 9kW
Power supply
1x230 V3x400 V
Circuit breaker
1x10 A/B3 x 16 A/B
Connection dimensions
-1 ¼“ external thread
Dimensions mm (w/d/h)
390 / 100 / 420
418 / 310 / 750
640 / 750 / 1950
Weight (kg)
7,535125
  • DHWU 9
  • HU 9
  • CU 1

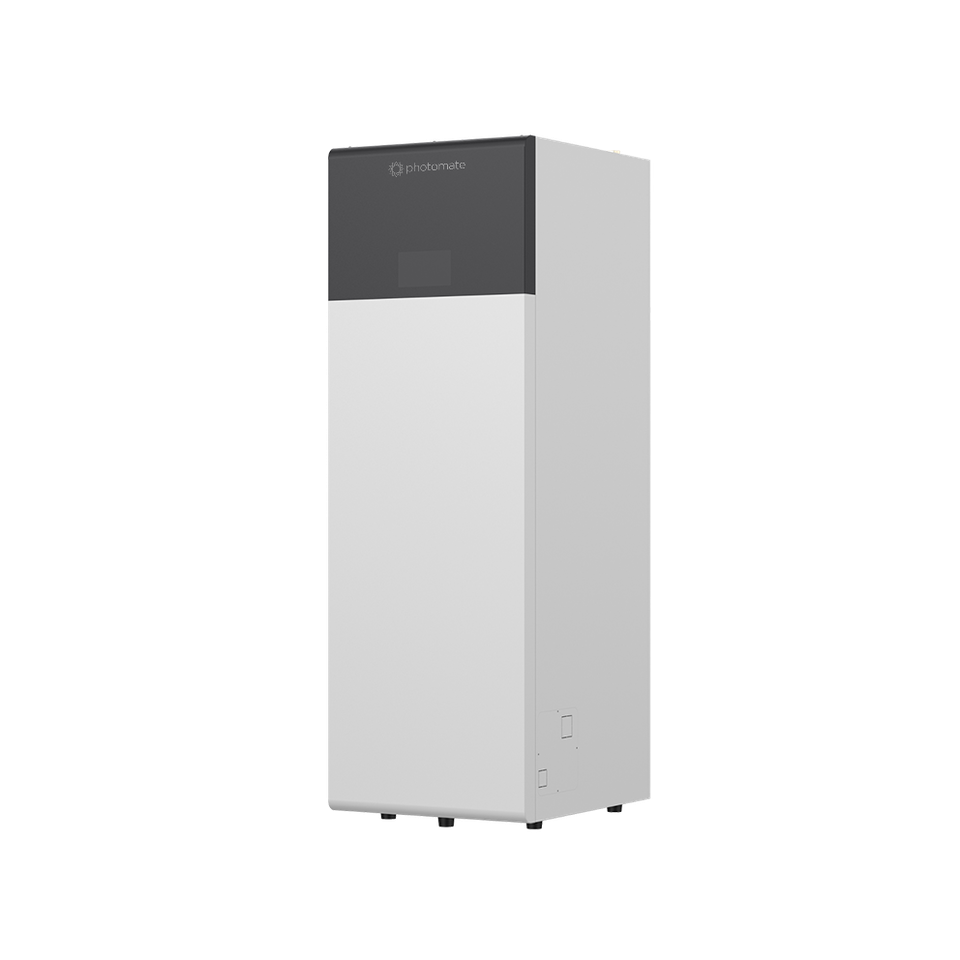

DHWU 9

  • Optimal option for new buildings, required installation area less than 1 m2
  • Quick and easy installation – top connection of all pipes
  • Min. door width for installation is 700 mm

  • Power supply 3 x 400 V
  • Circuit breaker 3 x 16 A/B
  • Stainless steel hot water tank 200 liters
  • Instantaneous electric boiler 9 kW
  • Hot water expansion vessel 19 liters
  • Heating expansion vessel 8 liters
  • Hot water circulation pump
  • Magnesium anode (extends the life of the stainless steel tank)
  • Automatic air vent
  • Three-way valve
  • Pressure gauge
  • Insulated piping and all components against condensation
  • Touch screen 7“
  • WiFi internet connection
  • MODBUS RS485, RTU protocol
  • Draining of tank and exchanger


HU 9

  • Option for new buildings and renovations without a requirement for hot water or with a requirement of more than 200 liters of hot water
  • Easy installation
  • Compact dimensions

  • Power supply 3 x400 V
  • Circuit breaker 3 x 16 A/B
  • Instantaneous electric boiler 9 kW
  • Expansion vessel for heating 8 liters
  • Automatic air vent valve
  • Three-way valve
  • Insulated pipes and all components against condensation
  • Modbus RS485, RTU protocol
  • Touch screen 7“
  • Wifi internet connection

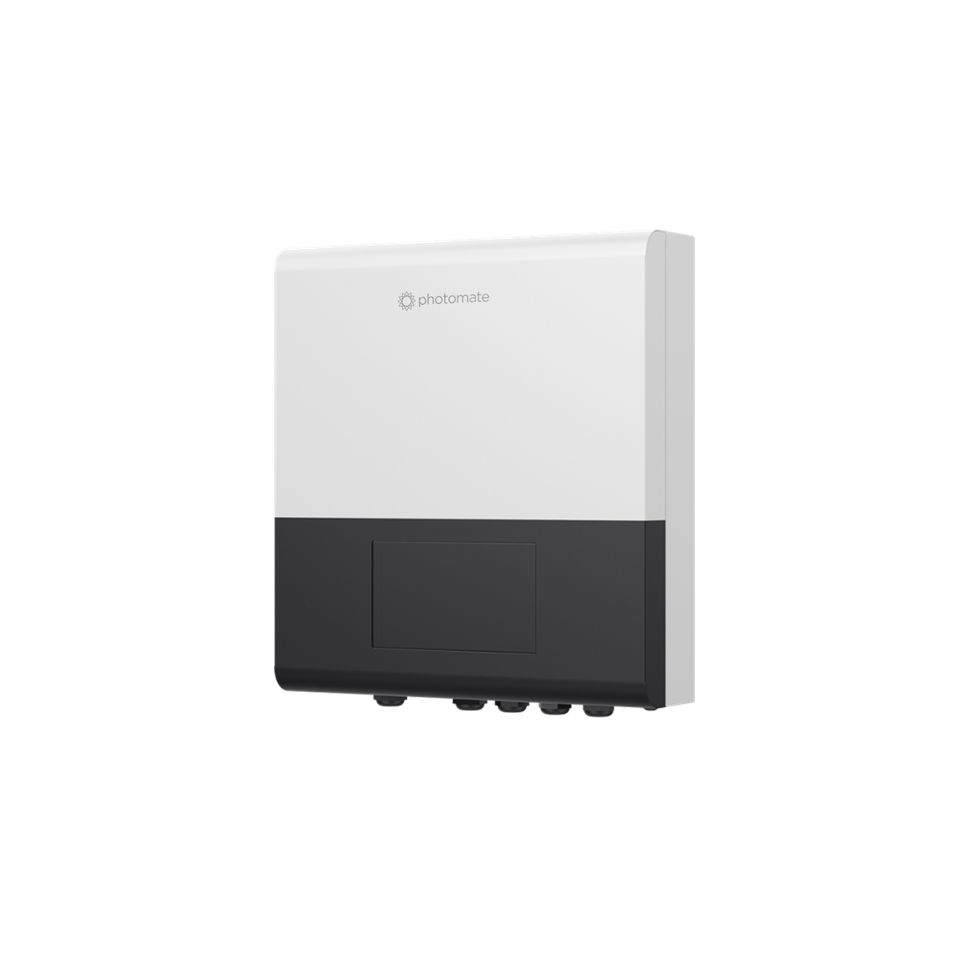

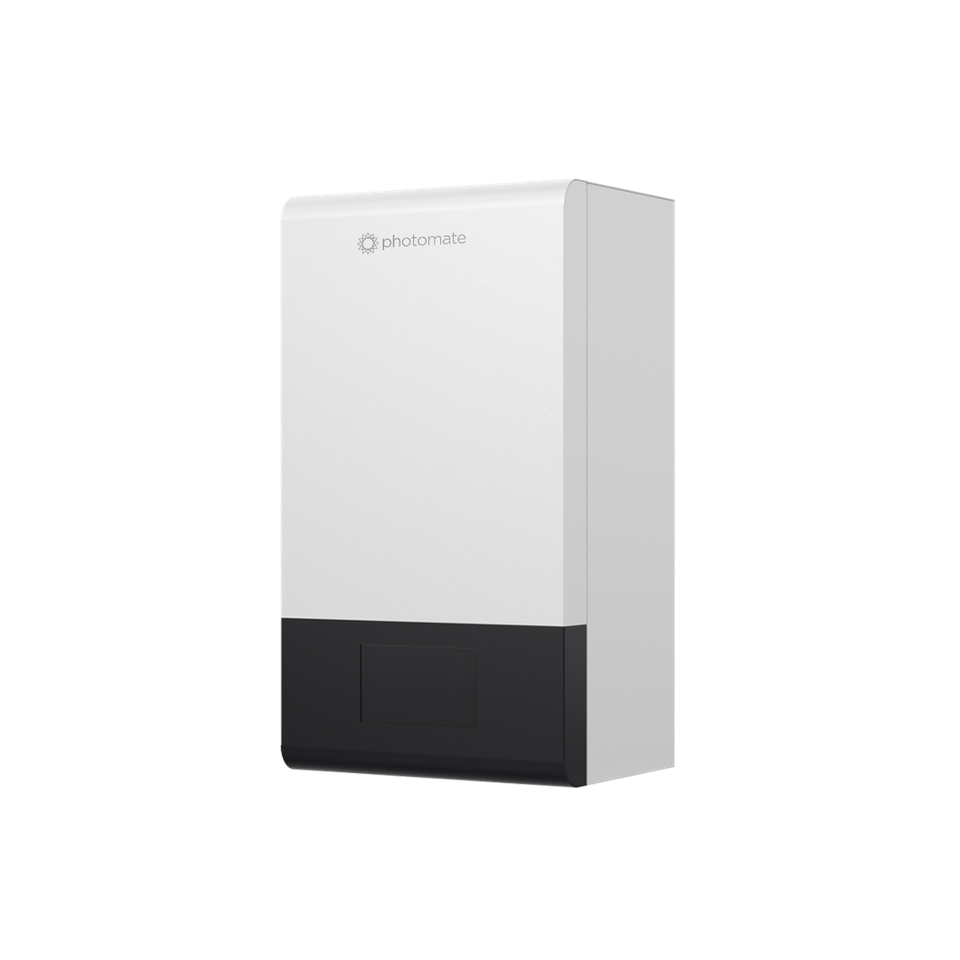

CU 1

  • Option for new buildings and renovations for variable installations with additional heat sources, storage tank and hot water tank
  • A large number of connection combinations can be created
  • Solar thermal system control

  • Power supply 1 x 230 V
  • Circuit breaker 1 x 10 A/B
  • Touch screen 7“
  • WiFi internet connection
  • MODBUS RS485, RTU protocol
  • Terminal board for connecting all necessary components
  • Suspension bracket, dowels and screws
  • Combination with other heat sources and existing components
  • Wall installation
