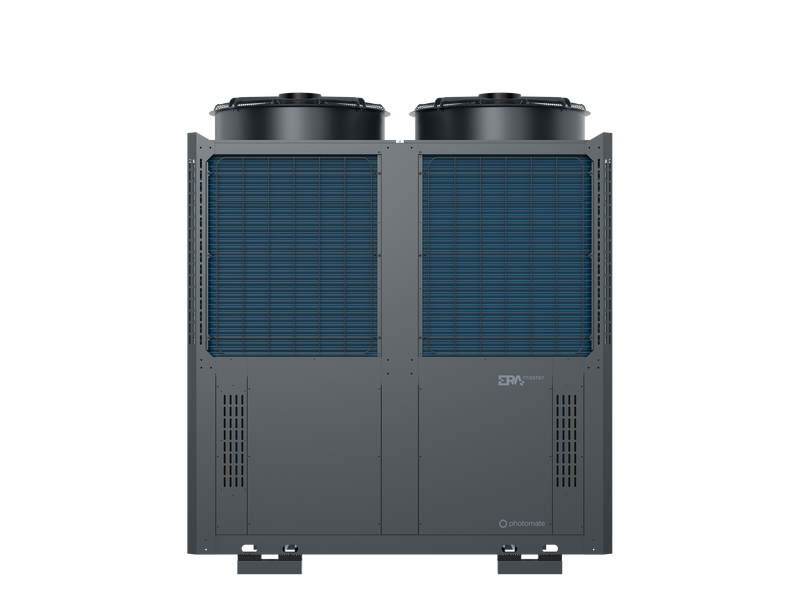

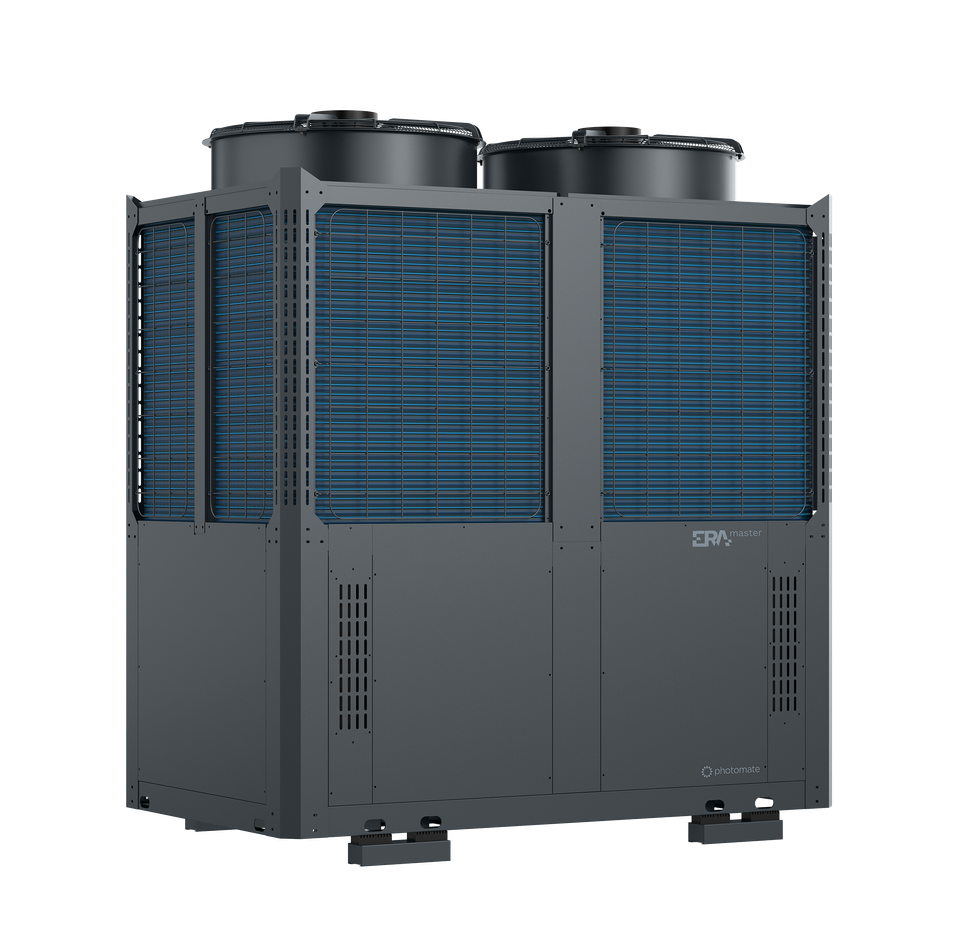

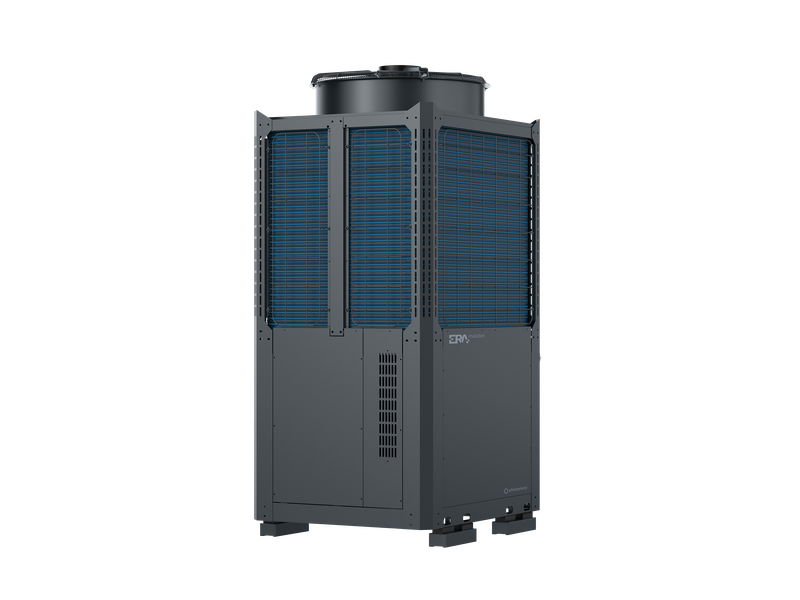

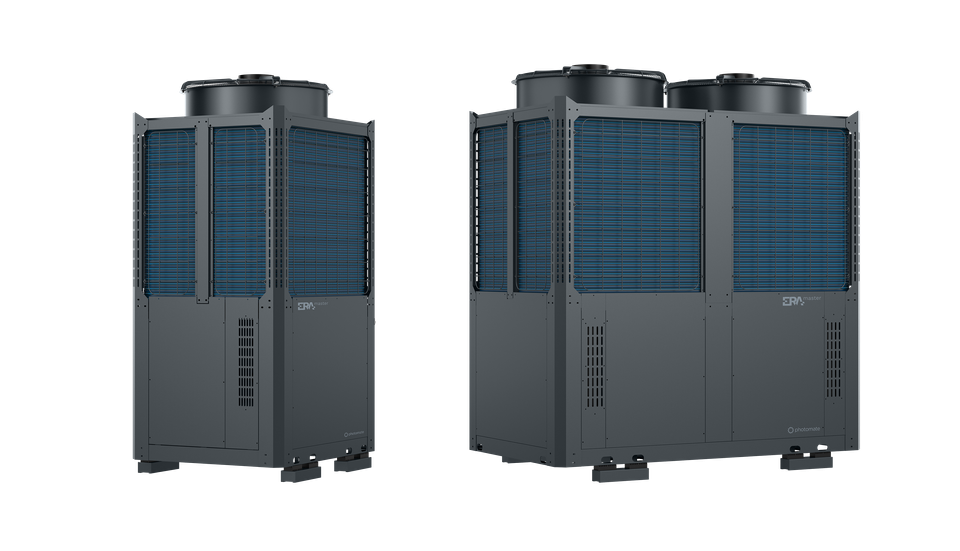

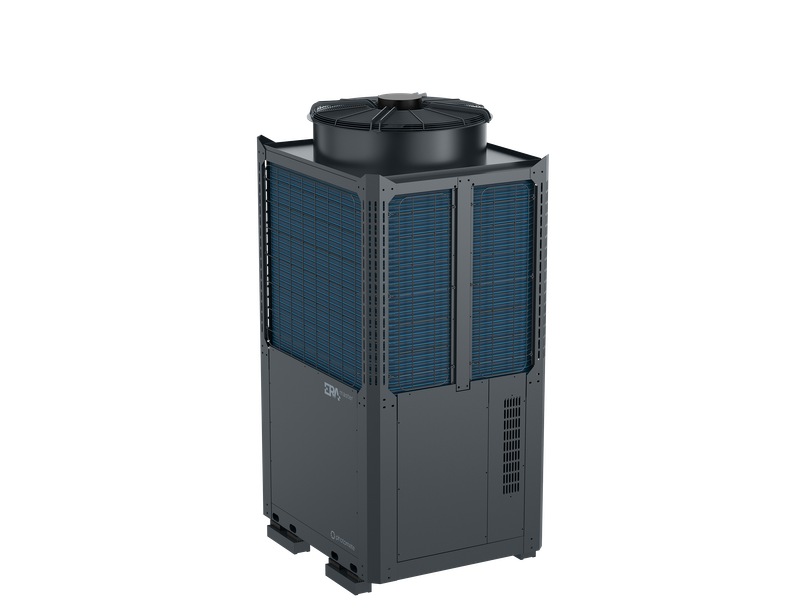

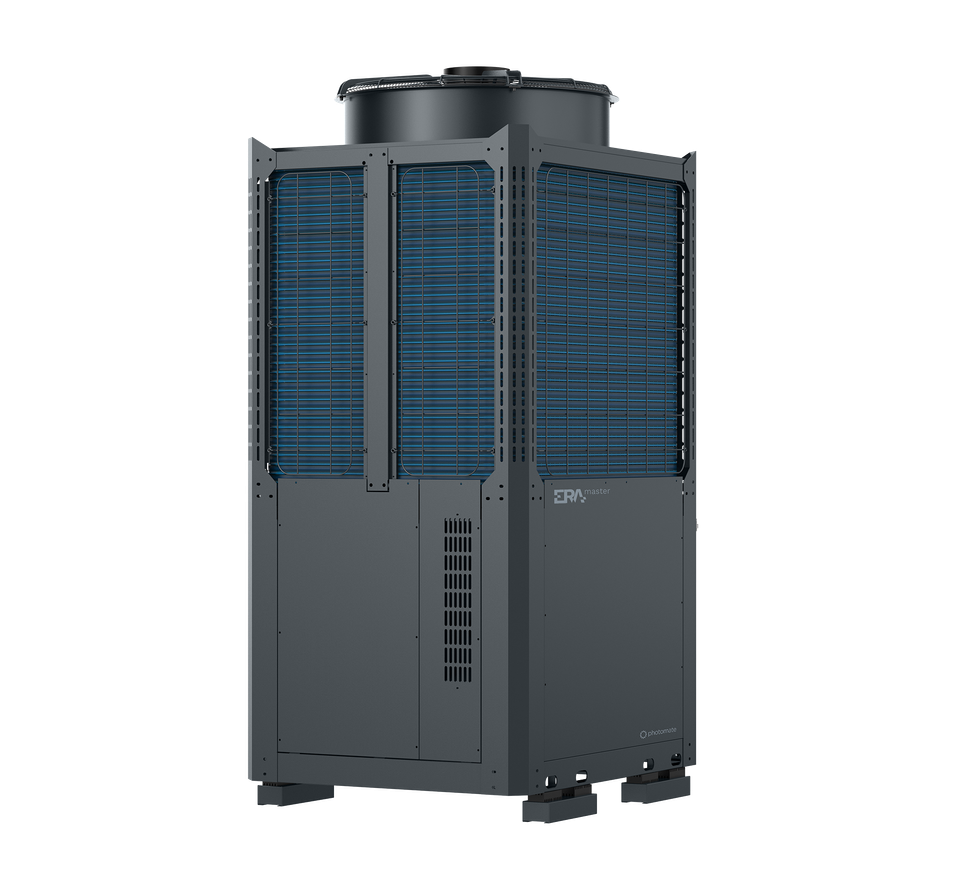

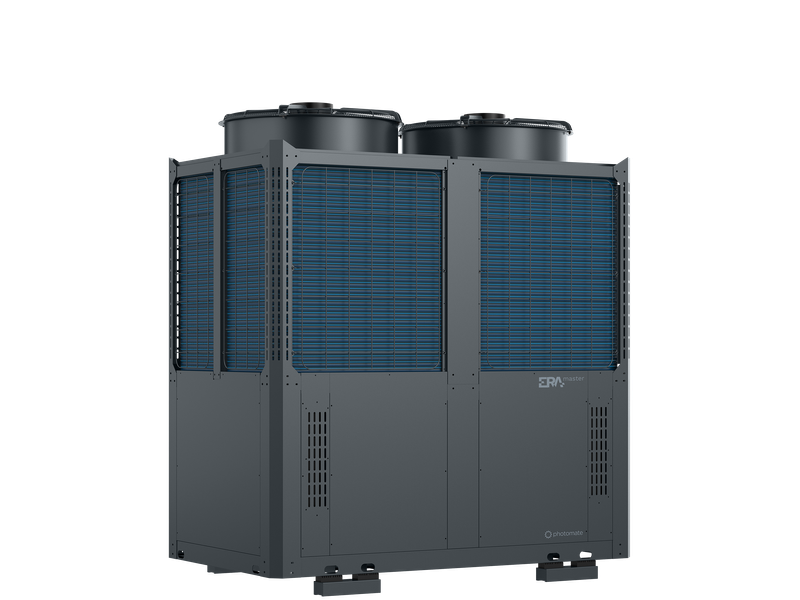

Premium commercial heat pump for new buildings and renovations
- Suitable for Apartment Buildings, Hospitals, Warehouses, Production Halls and other...
- Cascade up to 16 units
- Monoblock heat pump
- Modulated output 50 kW or 100 kW
- Energy class A+++ / A+++
- SCOP low temperature - 5.1
- SCOP medium temperature - 3.9
- Natural refrigerant R290
- Output temperature up to 75°C
- Functions: Heating, cooling and water heating
- Operating conditions -25 to 43°C
- Mitsubishi Electric dual rotary compressor specially developed for refrigerant R290
- Heated condensate pan
- Low noise, sound power 77 dB (A) according to EN12102
- 7" touch screen with intuitive control
- WiFi internet connection
- MODBUS RS485, RTU protocol
- Control via Energostation EMS
- Up to 16 units in a cascade allow you to create a cascade with a maximum heating output of 1.6 MW
EraMASTER 50 kW
- Hydraulic connection flange DN 50
- Circuit breaker 40 A
- Voltage 3 x 400 V
- Number of fans: 1
- Number of compressors: 2
- Nominal heating water flow: 8.6 m3
- Weight: 450 kg
- Dimensions (l / w / h): 1095×1315×2435
EraMASTER 100 kW
- Heating capacity 28 – 100 kW A7/W35
- Hydraulic connection flange DN 65
- Circuit breaker 40 A
- Voltage 3 x 400 V
- Number of fans: 2
- Number of compressors: 4
- Nominal heating water flow: 17.2 m3
- Weight: 890 kg
- Dimensions (l / w / h): 2190 x 1315 x 2435
Any combination of EraMASTER 50 kW and 100 kW can always create a system according to the customer's needs:
- Heating capacity
- Cooling capacity
- Top-notch water heating capacity
