Our products

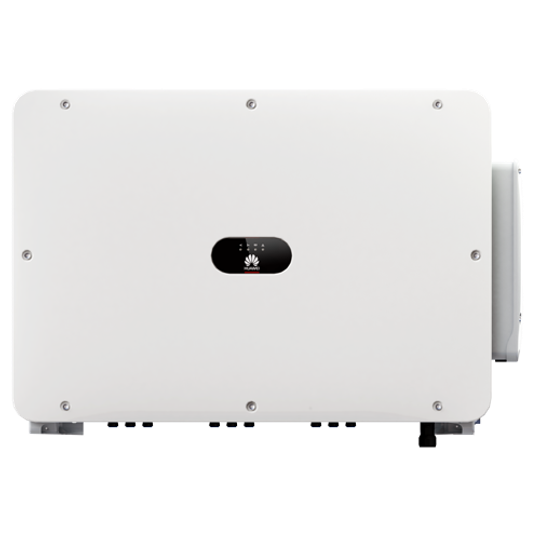

SUN2000-100KTL-M1

Max DC voltage: 1100 V
Max AC apparent power: 110,000 VA
10 MPPTs for versatile adaptions to different layouts
20 strings intelligent monitoring and fast trouble-shooting
Max. efficiency 98.8%, EU efficiency 98.6%
Max. efficiency 98.6%, EU efficiency 98.4%

Datasheet

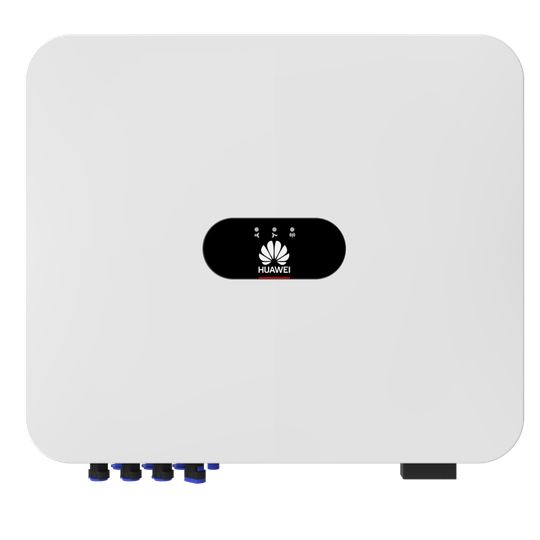

SUN2000-12-20KTL-M0

AI Powered AFCI to proactively mitigate fire risk
Optimizers enable more modules on rooftop
Up to 30% higher yields contributed by optimizing each panel performance
Integrated battery interface for future quick battery connection without extra device or retrofit cost
Lower upfront cost, paying for a string inverter cost to be battery ready

Datasheet

SUN2000-105KTL-H1

Max DC voltage: 1500 V / 1100 V
Max AC apparent power: 105,000 VA / 66,000 VA
6 MPPTs for versatile adaptions to different layouts
12 strings intelligent monitoring and fast trouble-shooting
Max. efficiency 99.0% / 98.9%, EU efficiency 98.8% / 98.7%

Datasheet

SUN2000-100KTL-H1

Max DC voltage: 1500 V / 1100 V
Max AC apparent power: 105,000 VA / 66,000 VA
6 MPPTs for versatile adaptions to different layouts
12 strings intelligent monitoring and fast trouble-shooting
Max. efficiency 99.0% / 98.9%, EU efficiency 98.8% / 98.7%

Datasheet

SUN2000-185KTL

Max DC voltage: 1500 V
Max AC apparent power: 185,000 VA
9 MPPTs for versatile adaptions to different layouts
18 strings intelligent monitoring and fast trouble-shooting
Max. efficiency 99.03% , EU efficiency 98.69%

Datasheet

SUN2000-60KTL-M0

Huawei SUN2000-60KTL-M0: the 60kW Smart string inverter with extremely high efficiency (98,9% max. efficiency, european efficiency 98,7%),requires only passive ventilation, has features such as online monitoring of all connected strings including characteristic curve measurement, power line communications and PID recovery mode.

Datasheet

SUN2000-60KTL-HV-D1-001

This product is suitable for large PV installations with input voltage of 1500V. 60 KTL offers also higher efficiency up 99%.

4 MPPT
String monitoring
PLC supported
No DC fuses
Smart String I-V Diagnosis supported
Max. efficiency up to 99%
Max. output power 66 kVA
IP65
Natural cooling

Datasheet

SUN2000-36/42KTL

The SUN2000-36/42KTL smart PV controller adopts the concept of “out with the Copper, in with the Silicon” and uses the Huawei Hisilicon chip and operating system, reducing the usage of copper devices. These features convert the traditional power converter to a smart controller that can “think” and the “brain” of a power plant, achieving better efficiency and quality. RS485 transmission is upgraded to PLC transmission, providing more reliable transmission and ensuring that monitoring data can be trusted.

Customer value

4 MPPTs for versatile adaptions to different layouts
8 strings intelligent monitoring and fast trouble-shooting
Power Line Communication (PLC) supported
DC disconnect integrated, safe and convenient for maintenance
Type II surge arresters for both DC and AC Ground fault protection
Residual Current Detection (RCD) protection
Max. efficiency 98.8%, European efficiency 98.6%
No need for external fans with natural cooling technology

Datasheet

SUN2000-33KTL-A

Huawei launched a new generation 33KTL-A. Unlike the original 33KTL, the new 33KTL-A is buil with the same platform as the third generation 36/42KTL inverters. The additional advanced features include:

Customer value

Max DC voltage: 1100 V
Max AC apparent power: 47,000 VA / 40,000 VA / 33,000 VA
4 MPPTs for versatile adaptions to different layouts
8 strings intelligent monitoring and fast trouble-shooting
Max. efficiency: 98.8% / 98.8% / 98.6%

Datasheet

SUN2000-17/20KTL

These solar inverters maximize energy yields for rooftop, hillside, and ground-mounted Photo-voltaic (PV) power plants.

Technically, they are string inverters designed for a three-phase power grid connection. Intelligent monitoring and fault detection for the strings reduces the time needed to locate faults. The inverters use three-level topology and deliver maximum efficiency of 98.7%. The photon test result is A+/A+. Each inverter provides up to three Maximum Power Point Tracking (MPPT) routes for a particular environment.

The inverters use natural cooling with no external fan for long-term outdoor applications.

Datasheet

SUN2000-8/12KTL

These solar inverters maximize energy yields for rooftop, hillside, and ground-mounted Photo-voltaic (PV) power plants.

The inverters use natural cooling with no external fan for long-term outdoor applications.

Datasheet

SUN2000L-2-5KTL

Huawei integrates the latest digital and internet technology with residential solar technology. Bringing you optimized PV power generation, built-in plug & play battery interface and smart home energy management.

Customers value

Optimizer optional
10 kg, 16,5L, easy installation
One-click maintenance
Smart module I-V Diagnosis supported
Integrated Plug&Play energy storage interface
IP65
Natural cooling
High voltage rapid shutdown, secure human & assets safety

Datasheet

SmartLogger2000

SmartLogger2000 is an integrated control unit, with the functions of interface aggregation, protocol conversion, data collection, and centralized management.

Customer value

Smart

Functioning as communication manager, data logger, PLC master and Ethernet switch
Multiple communication interfaces including PLC, RS485, Fast Ethernet, and SFP ports, flexible applications
Up to 200 devices supported, including up to 80 Smart Inverters
STP and RSTP supported for multi-ring Ethernet network and ring protection
Bluetooth, embedded WEB and USB supported, user-friendly

Simple

An integration of data collection, protocol conversion and Ethernet switch

Reliable

Industrial application and carrier-class reliability

Datasheet

SmartLogger1000

The SmartLogger is dedicated for monitoring and managing the PV power generating system. It converges all ports, converts protocols, collects and stores data, and centrally monitors and maintains the PV power generating system.

Customer value

Smart

MODBUS-TCP for connections to Huawei NetEco
IEC60870-5-104 for connections to third-party monitoring systems
USB and embedded web for data reading and software upgrade
Automatically detecting equipment and assigning RS485 addresses
Remote control of active & reactive power

Simple

Up to 80 inverters feeding into one Smart Logger;
Up to 30 devices per RS485 bus;
Easy to install on walls, tabletops and rails mounting

Stable

Max. reliable communication range of 1000m;
Remote configuration, automatic set-up of RS485 addresses

Datasheet

PLC Module

A PLC module consists of the station (STA) and central coordinator (CCO), The PLC CCO can connect to SUN2000 inverters that support power line communication (PLC) functions to transmit data over the existing power line, and does not require additional communications cable, which reduces the construction and maintenance costs and improves communication reliability and efficiency.

Huawei CloudEngine, Campus, and SMB Switches combine advanced architecture and design with carrier-grade reliability to provide high-availability, high-performance networking for large-scale data centers, ISPs, and enterprise IT networks of all types and sizes.

Customer value

Smart

Transmit data over the existing power line, No need for RS485 cables, reducing engineering costs

Simple

Up to 80 inverters feeding into one PLC CCO
Ears and rails mounting

Reliable

Higher data transmission rate of 115.2Kbps
Overcome the difficulties of troubleshooting for RS485 cables

Datasheet

SmartLogger1000A

Smart Zero Export control design
Flexible connection to NetEco1000s, FusionSolar Smart PV Management System, and third-party platform 1
Remote control of active & reactive power
Convenient communication by 2G / 3G / 4G 2
Power Line Communication optional
APP and embedded web for data reading and software upgrade
Improvement of safety by SPD inside

Datasheet
